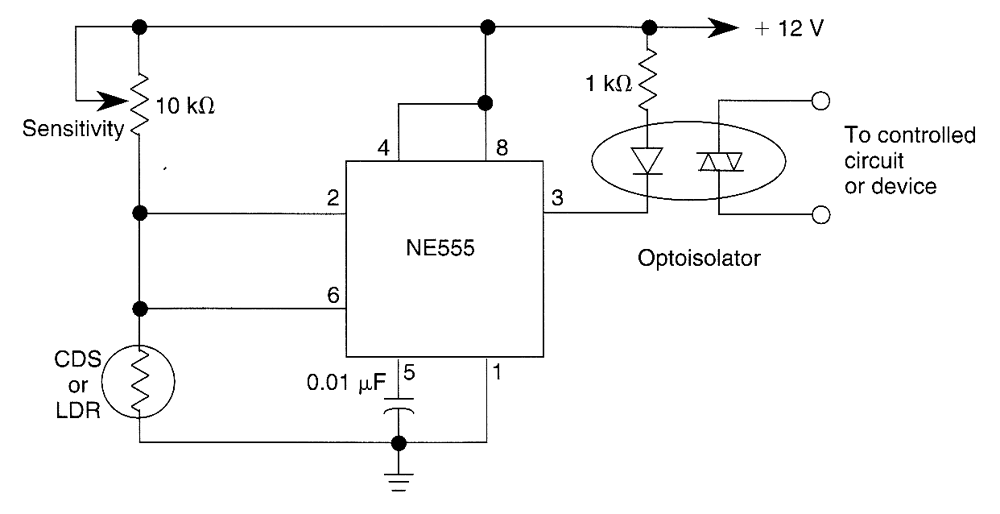

DARK_ACTIVATED_RELAY_WITH_HYSTERESIS

Published:2009/6/17 2:32:00 Author:May | From:SeekIC

The hysteresis of a 555lC can be used to advantage for sensing a drop in light. An LDR or CDS cell with about 2 to 8 k resistance at desired light level should be used.
