LIGHT_ISOLATED_SOLID_STATE_POWER_RELAY_CIRCUITS

Published:2009/6/24 23:48:00 Author:May | From:SeekIC

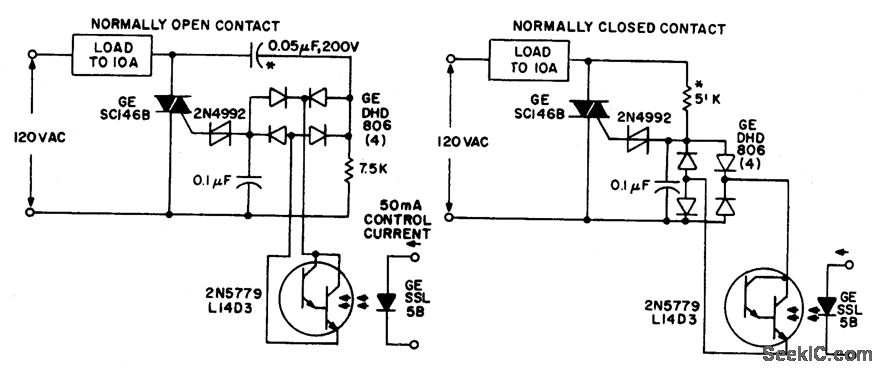

Both circuits use the G.E. SC146B, 200 V, 10 A Triac as load current contacts. These triacs are triggered by normal SBS (2N4992) trigger circuits, which are controlled by the photo-Darlington, acting through the DA806 bridge as an ac photo switch. To operate the relays at other line voltages the asterisked (*) components are scaled to supply identical current. Ratings must be changed as required.Incandescent lamps may be used in place of the light emitting diodes, if desired.
