RELAY_FUSE_FOR_POWER_SUPPLIES

Published:2009/6/17 20:45:00 Author:May | From:SeekIC

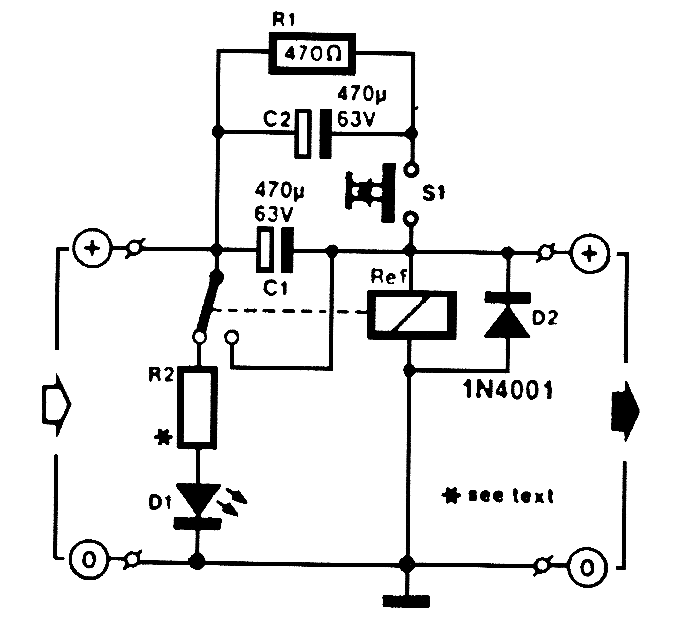

A method of adding overload protection to a power supply using a relay is shown. In each cir-cuit, the relay must be reset by a momentary switch using a charge on capacitor C2. This prevents overload ifthe short still exists.
