RF_ACTUATED_RELAY

Published:2009/7/7 8:08:00 Author:May | From:SeekIC

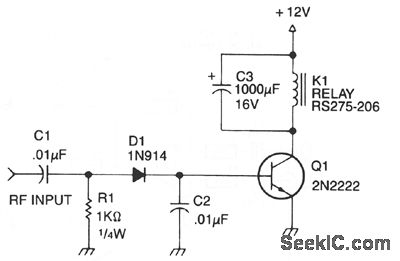

Automatic antenna switching or rf power indi-cation can be achieved with this circuit. Relay will key with less than 150 mW drive on 2 m.
