TV_REMOTE_CONTROL_RELAY

Published:2009/6/19 4:06:00 Author:May | From:SeekIC

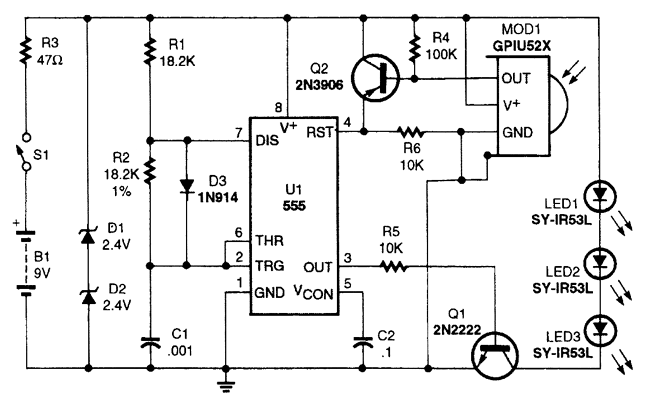

This circuit functions as an IR repeater to extend the range of your TV remote control. MOD1 is a P/N GP1U52X IR detector and the receiver is available as Radio Shack P/N 276-137.
