Switch type voltage stabilizer circuit composed of the CW1842

Published:2011/6/21 1:15:00 Author:Christina | Keyword: Switch type, voltage stabilizer | From:SeekIC

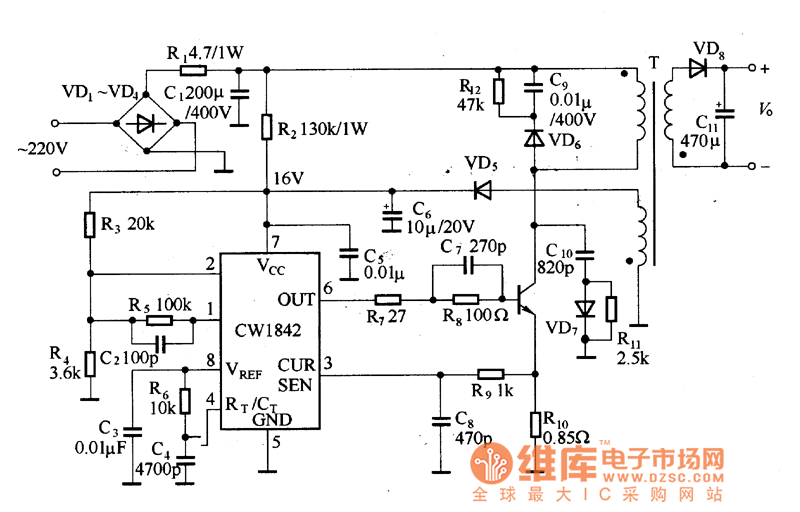

The single port flyback transforming type switch power supply circuit is as shown in the figure, the input voltage is 220V AC. Switch type voltage stabilizer circuit composed of the CW1842 The output voltage depends on the subprime circle number of T, R2 is the input resistance of CW1842.
