Temperature Controller with U217B

Published:2012/9/12 21:09:00 Author:Ecco | Keyword: Temperature Controller | From:SeekIC

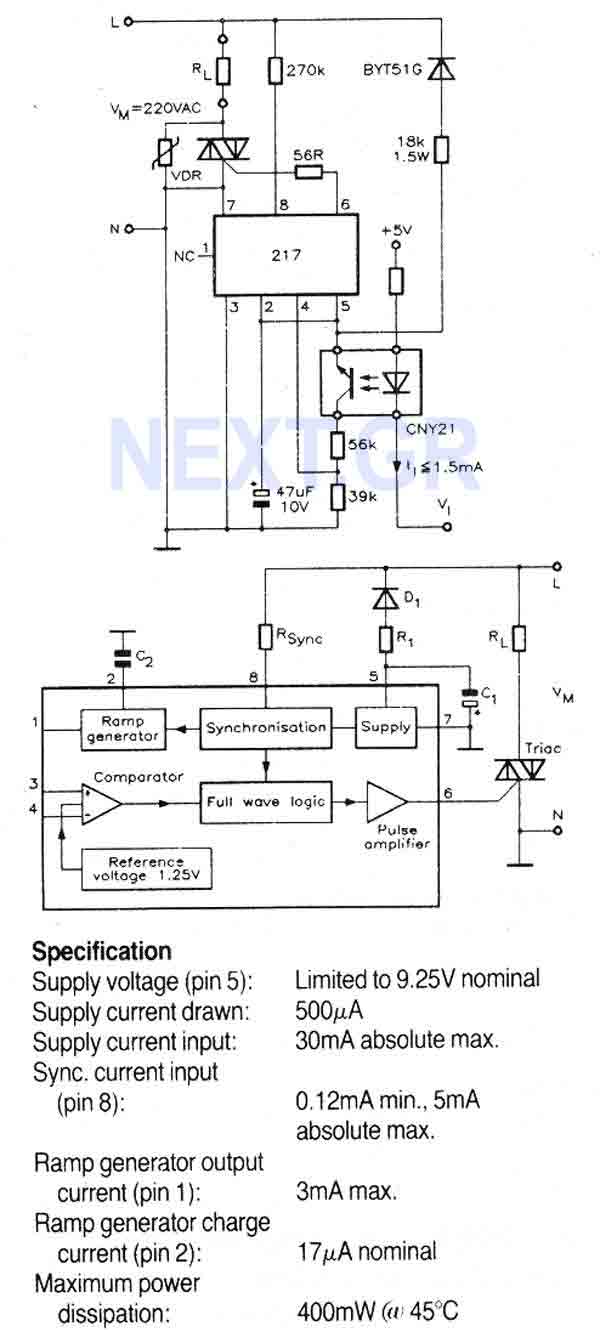

A triac controller for switching resistive loads directly from the mains supply using the zero crossing technique. The device is powered directly from the mains via a diode and dropper resistor, and the IC has its own regulator to limit its supply to 9.25V. To ensure that no switching occurs outside of the zero crossing point, full wave logic is employed to guarantee that complete mains cycles only are switched to the load. Source: NEXT.GR
