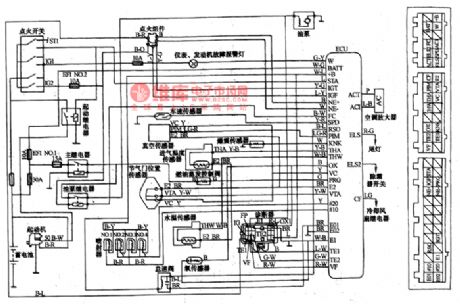

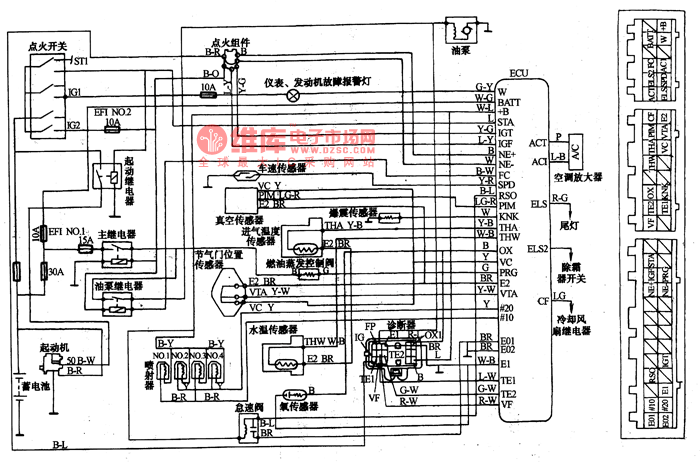

The engine power-control system circuit of Tianjin Toyota 8A-FE

Published:2011/5/17 22:36:00 Author:Borg | Keyword: power-control systemToyota | From:SeekIC

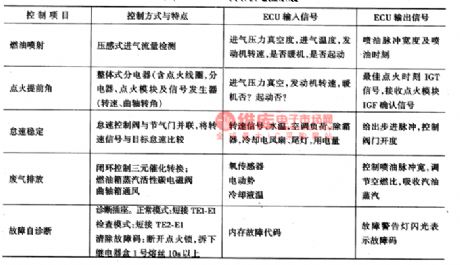

Tianjin Automobile Industry launched the Xiali TJ7131U at the turn of the century, which is fixed with the 8A-FE engine produced by Tianjin Toyota Corp.. The engine has 4 cylinders and 16 valves, power controlled petrol multiple jets, dual overhead camshafts, closed-loop control and triple catalysis transformers, the emission is 1.31L, rated output power is 63kW/6000rpm, and the largest torque is 1lON·m/5200rpm。 Like other power jet engine, the control system of 8A-FE can also control the stableness of idle speed, the pollution of exhaust and fault detection, etc.
