Using BISS0001 infrared sensor automatic nighttime lighting control circuit diagram

Published:2011/4/19 22:19:00 Author:Rebekka | Keyword: Infrared sensor, Automatic nighttime lighting | From:SeekIC

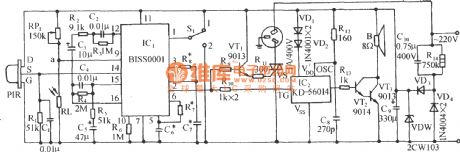

Circuit is shown in the figure, which is based on infrared sensing ASIC BISS0001 core composition, coupled with its external PIR pyroelectric infrared sensor and light control circuit. You can make one for the warehouse, shopping malls, corridors, other occasions, the automatic aisle lighting, lighting or security systems.
