DC Motor armature core circuit diagram

Published:2011/4/11 2:55:00 Author:may | Keyword: DC Motor armature core | From:SeekIC

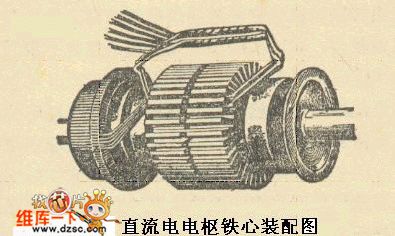

Two usage: [armature core assembly drawing ( diagram) ] As major component of main magnetic circuit Embedded armature winding is usually stamped and laminated by 0.5 mm silicon steel pates. diagram: DC Motor armature core circuit diagram
