Flyback Type Converter Circuit Composed Of MAX5021

Published:2011/8/14 3:39:00 Author:Robert | Keyword: Flyback, Converter | From:SeekIC

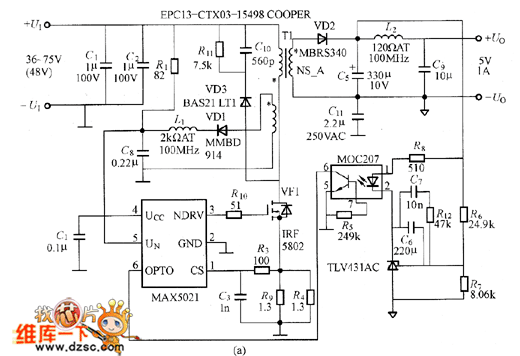

The picture shows the flyback type convertor composed of MAX5021. The MAX5021 is a isolated power PWM current-type integrated controller with wide input voltage range. It is suitable for the remote communication. This controller works under the 262kHz fixed oscillation frequency switching and it could reduce the noise efficiently. It has a big hysteresis feature and low starting current. It also has the low-voltage closing and locking function and so on. If MAX5021 is used in the power supply with wide voltage input range and low output power, it could reduce the power supply's power consumption. The picture shows the flyback type converter circuit composed of MAX5021.
