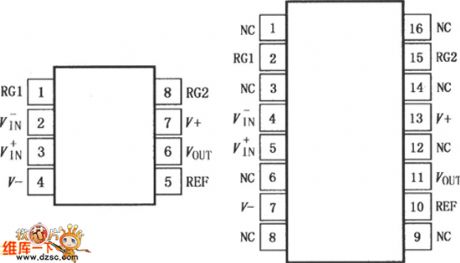

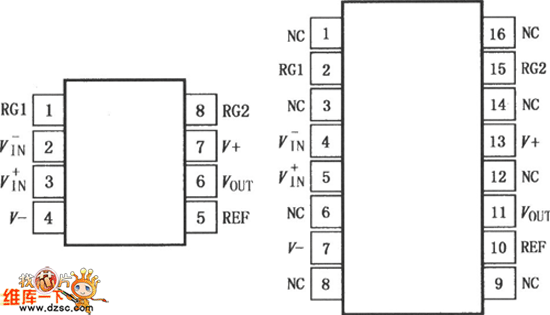

INA217 Low-Noise Low-Distortion Instrument Amplifier Pin Circuit

Published:2011/5/22 0:38:00 Author:Robert | Keyword: Low-Noise, Low-Distortion, Instrument, Amplifier, Pin | From:SeekIC

The INA217 is a low-noise, low distortion monolithic instrumentation amplifier. With its design of current feedback circuit it can be used in low voltage level audio signals' amplification such as symmetric low-resistance miniature microphone (microphone) signal amplification. INA217 has low noise and wide bandwidth. So it can be used in many industrial, instrumentation and medical applications. Its special distortion elimination circuit can minimize the distortion. With 200Ω source impedance the INA217 provides the low-noise performance which almost closing to the theoretical value.With the excellent performance ofdifferential input, low noise and low distortion, it provides professional miniature microphone (mike) signal amplification.
