TEA5551T Monolithic Radio Integrated Circuit

Published:2011/7/19 11:54:00 Author:Michel | Keyword: Monolithic, Radio Integrated Circuit | From:SeekIC

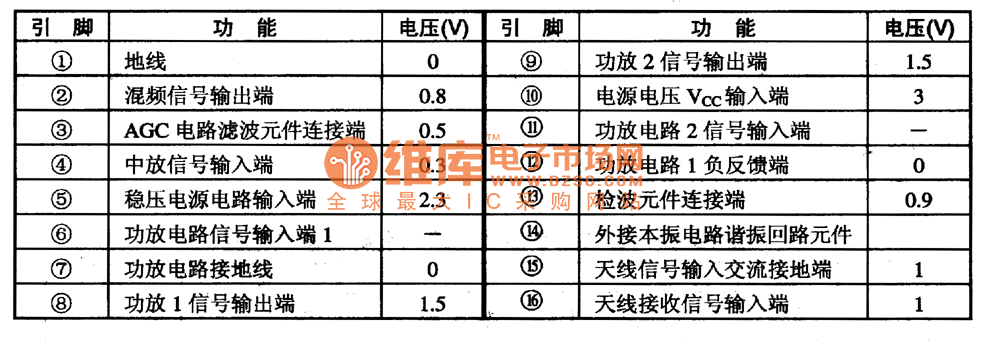

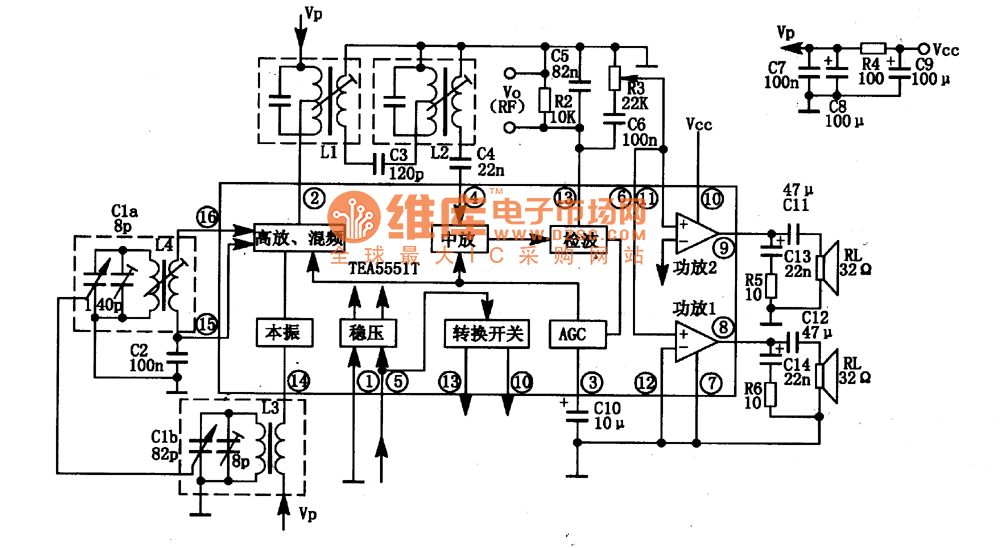

TEA5551T is monolithic radio integrated circuit prodcued by Philips of Poland.TEA5551 is widely used in small headset type radio and AM of playback. First,Function Features TEA5551 integrated circuit contains AM radio frequency mixing, vibration, putting, detection and AGC circuit.It has all functions such as audio power output is received by the antenna.Its inside circuit block diagram and typical application circuit is shown as picture 1-1. Second,Pins Functions and DataPins Functions and Data of TEA5551 are shown as table 1-2.
