MICRO_TV_TRANSMITTER

Published:2009/6/24 21:19:00 Author:Jessie | From:SeekIC

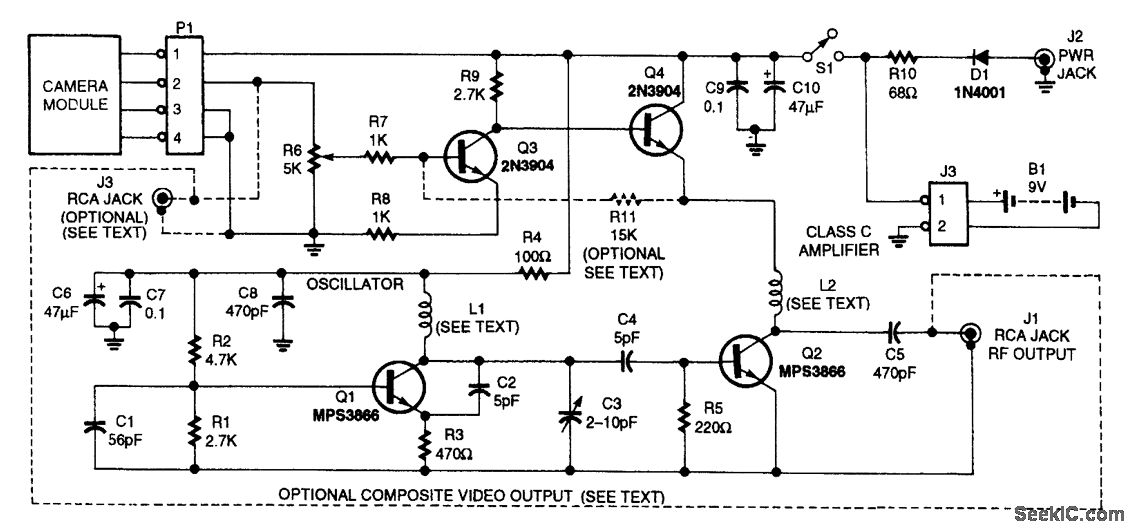

For very low power noncritical applications, this small TV modulator can be useful as a shortrange (50 feet) transmitter for video signals. A small camera module can be used as a source. R11 is used to vary dc offset of the modulator.
