TELEVISION_VERTICAL_DEFLECTION_CIRCUIT

Published:2009/6/22 23:40:00 Author:Jessie | From:SeekIC

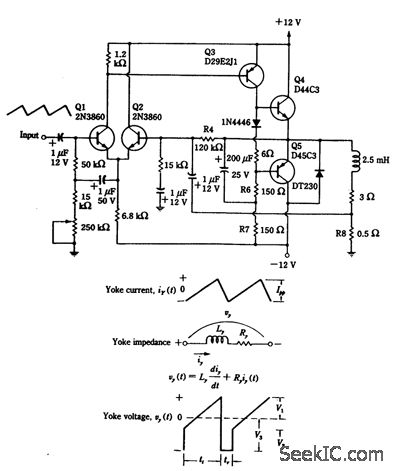

Two transistors are used to drive the yoke(2.5 mH + 0.3Ω) in this deflection circuit. R8 samples the yoke current and provides feedback to Q2, resulting in a very linear current ramp through the yoke.
