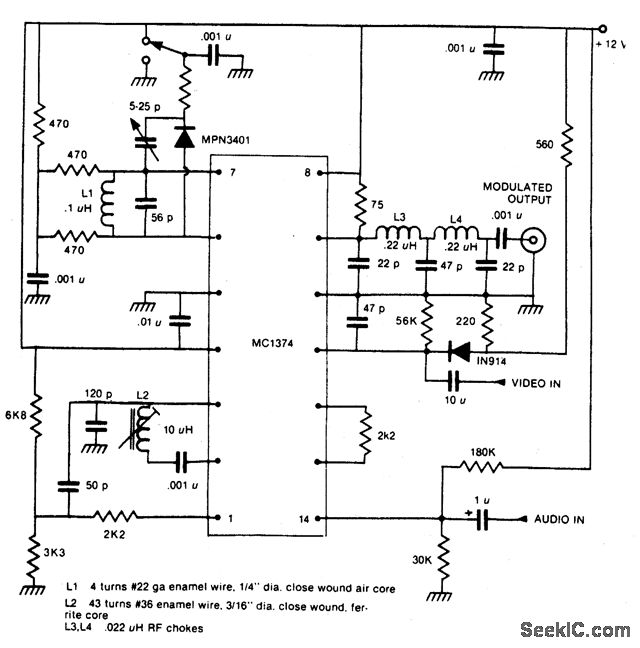

TV_MODULATOR_USING_A_MOTOROLA_MC1374

Published:2009/6/25 22:13:00 Author:May | From:SeekIC

This one-chip modulator requires some outboard circuitry and a shielded box.
