The simplest capacitor step-down dirve LED circuit

Published:2011/8/11 21:26:00 Author:Borg | Keyword: capacitor, step-down dirve, LED | From:SeekIC

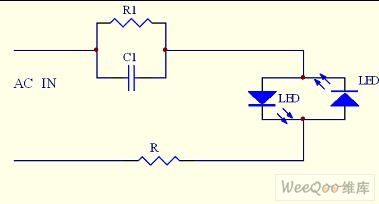

This is a simplest capacitor step-down applicational circuit, in the circuit, the AC voltage is rectified by 2 backward parallel LEDs after it is stepped down. The circuit can be used in lighting lamps, key indicators and other situations with low standards.
