The constant voltage power resources circuit formed by MAX610 series AC/DC chip(no transformer)

Published:2011/7/20 22:59:00 Author:leo | Keyword: Constant voltage, no transformer | From:SeekIC

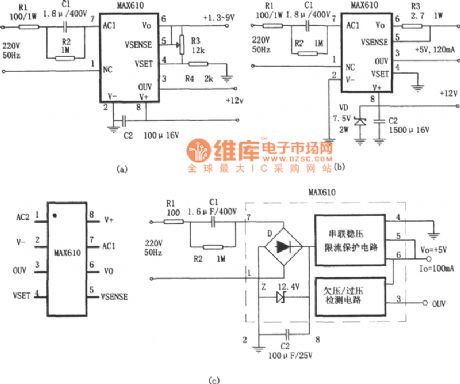

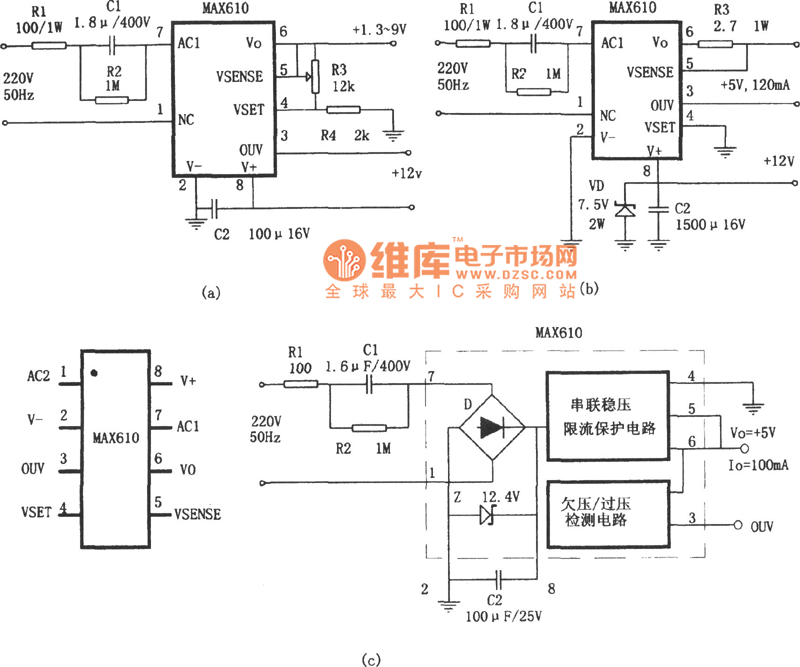

As the picture shows, this circuit is the no transformer constant voltage power resources circuit formed by MAX610 series AC/DC chip. Picture (a) is the power resources with adjustable voltage and picture (b) is power resources with extending current. MAX610 series is a type of single chip and low power DC/AC convertor which has the following features: the standard output voltage is 5 V± 0.2V and the current is 75μA with over current protection.
