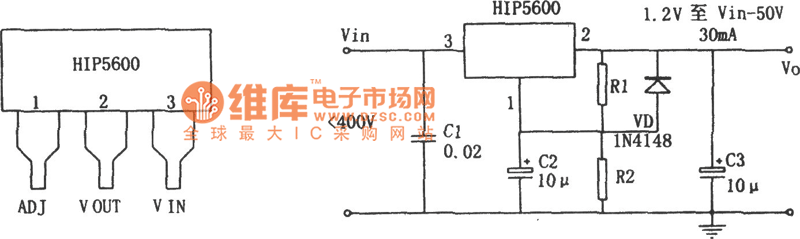

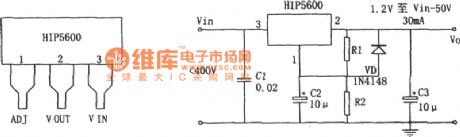

The low power constant voltage power resources circuit formed by HIP5600(NO transformer)

Published:2011/8/10 19:07:00 Author:leo | Keyword: Low power, constant voltage, power resources, no transformer | From:SeekIC

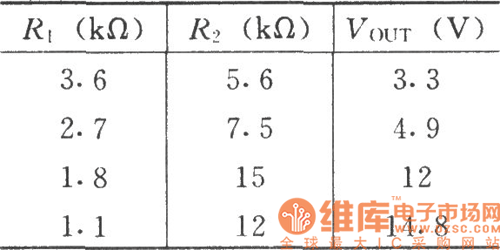

The constant voltage power resources circuit has many unique features:1.DC work voltage can reach 400V2.AC work voltage can reach 280 V3.It can be connected to two outer resistances. Its DC input voltage is 1.2 V and can be adjusted from VIN to 50 V. The input current can be adjusted from 1 mA to 30 mA.4. It has its own cooler and does not need outer protecting circuit.
