The regulator power supply(LT1587,LT1431S) used for voltage regulator power supply for driving micro processor

Published:2011/9/13 20:01:00 Author:leo | Keyword: Regulator power supply, voltage regulator power supply, driving micro processor | From:SeekIC

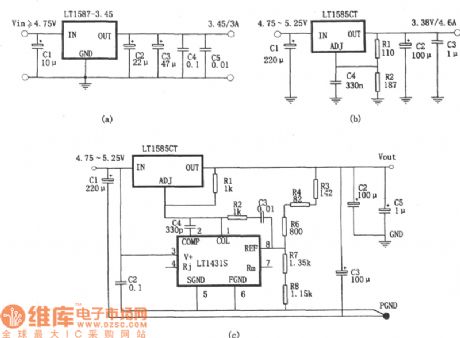

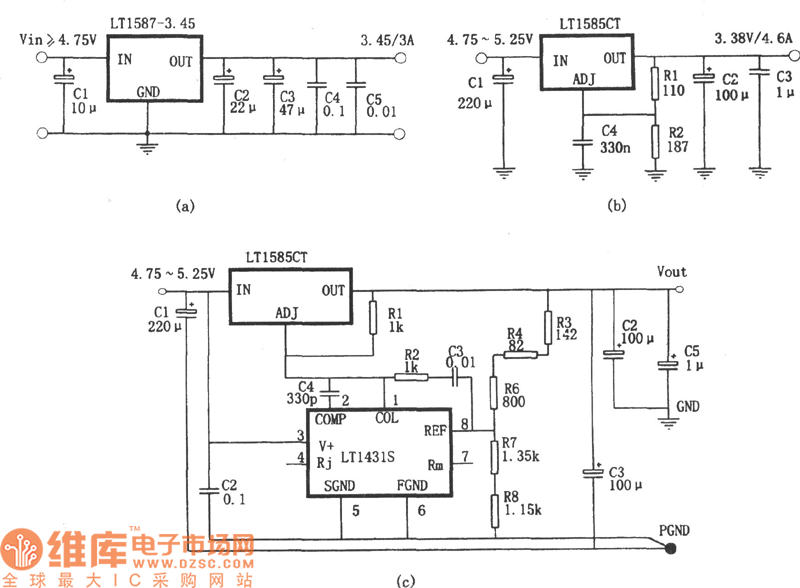

Picture (a) shows a micro processor power supply formed by LT1587-3.45. And picture (b) shows a regulator power supply with adjustable voltage and formed by LT1585. While picture (c) shows a micro processor power supply formed by LT1584 and LT1431. The values of output current of LT1584, LTl585 and LT1587 are separately 7A, 4.6 A and 3 A. They have feature of excess response to high speed and have a load adjusting rate of 0.5%, which are perfect for voltage regulator for driving micro processor. They have protection circuit against overheat.
