Published:2011/9/27 22:15:00 Author:Rebekka | Keyword: direct , infrared remote control, switch | From:SeekIC
LS-2 remote control switch infrared sensor module is basically the same with the LS-18, in addition, it isused as a reflector.
LS-2 Pin diagram form
LS-2 internal block diagram
Electrical parameters LS-2 remote control switch module operating voltage is 4 ~ 6V (DC), typical value is 5V; Operating current is 2 ~ 4mA; Control output terminal (L1, L2) output voltage is4 ~ 6V; Input, output current is 50mA, reflection part of the power consumption is less than 1.5mA; Ip-p reflex drive capability is greater than 50mA; When it is used as a reflection, the reflection distance is 4 ~ 100cm, corresponding external current limiting resistor is 510Ω ~ lkΩ; When it is used as the direct infrared remote control switch, the maximum remote control distance is up to 8m.

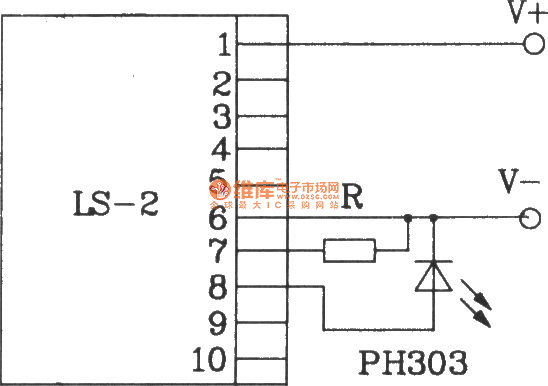

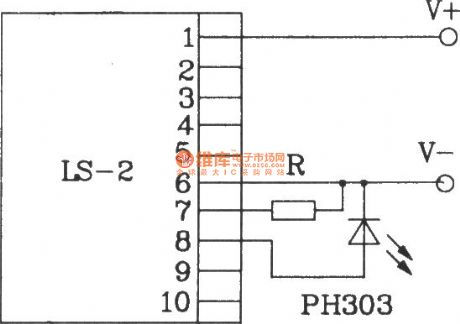

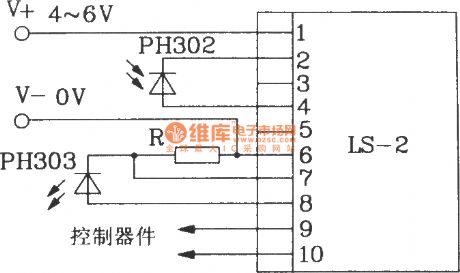

Here is the basic application circuit of LS-2.
This circuit remote control distanceis up to 5 ~ 8m
