Single and multi-channel remote control transmitter and receiver circuit composed of TDC1808/1809 RF

Published:2011/10/20 2:26:00 Author:Rebekka | Keyword: RF single-and multi-channel , remote control transmitter and receiver | From:SeekIC

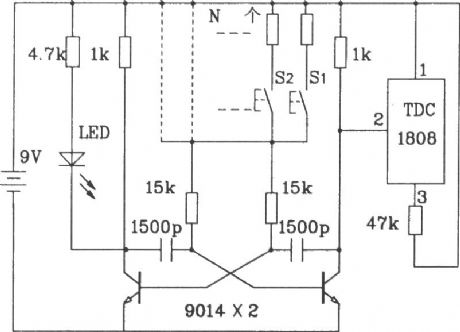

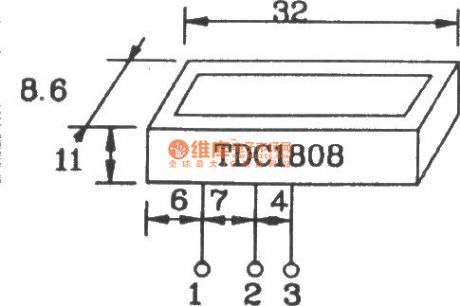

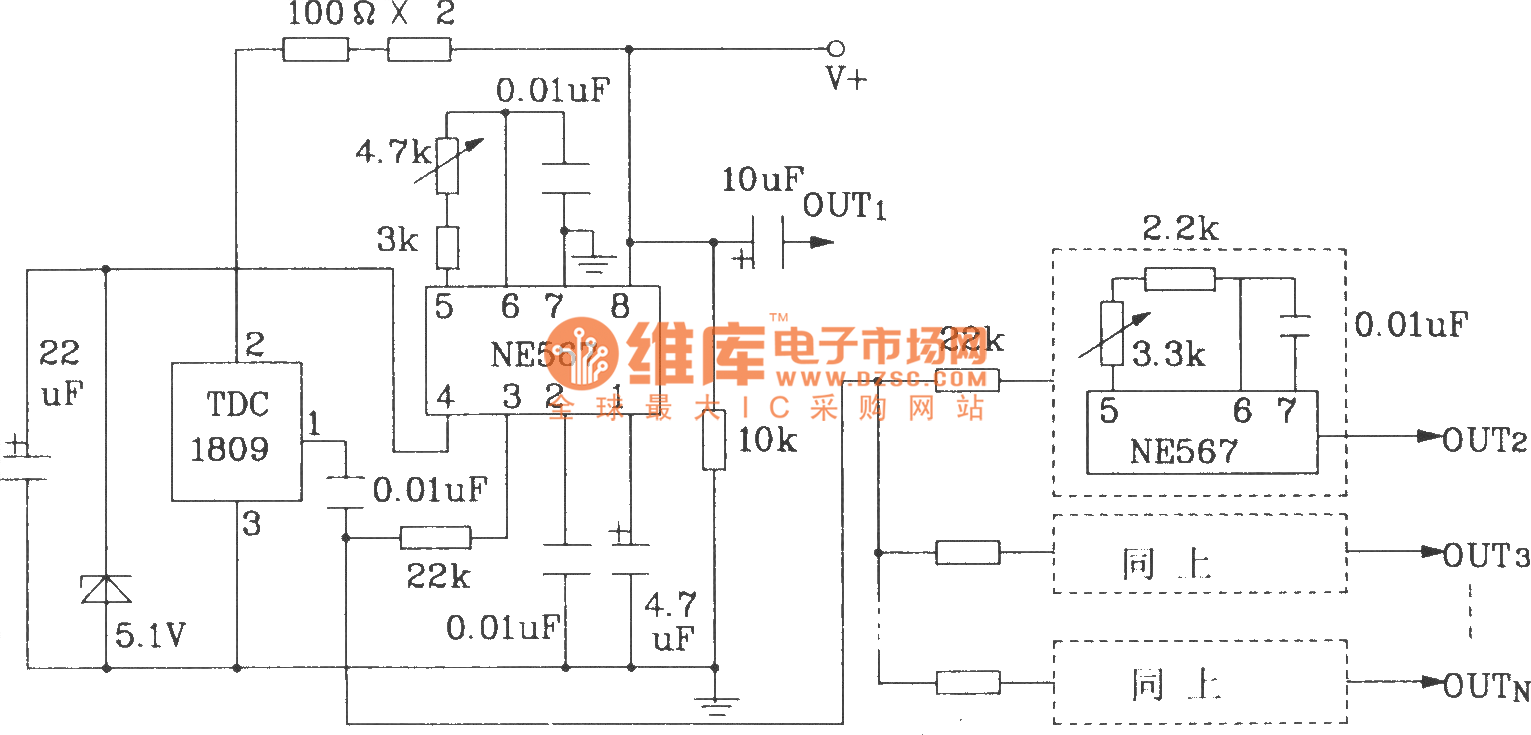

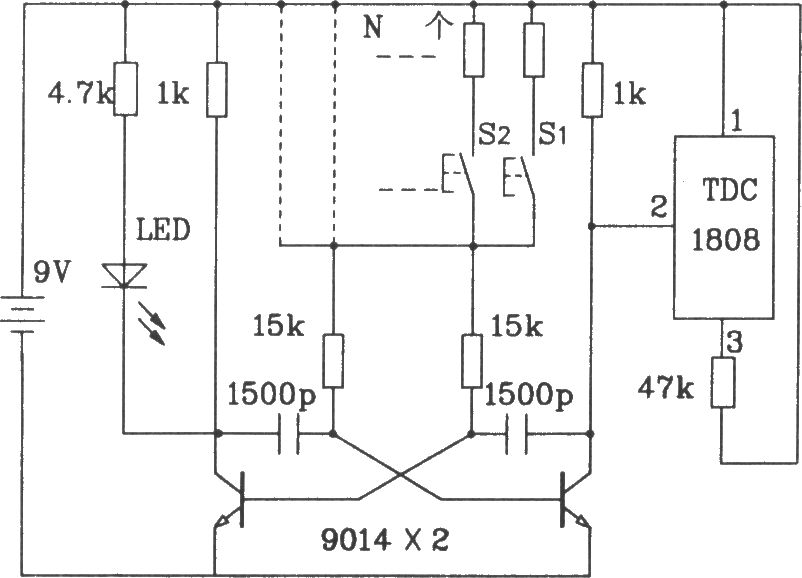

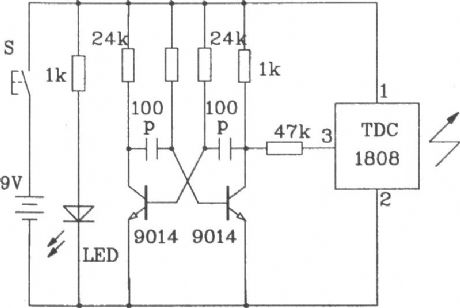

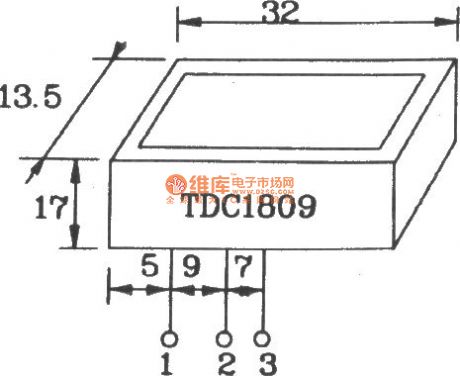

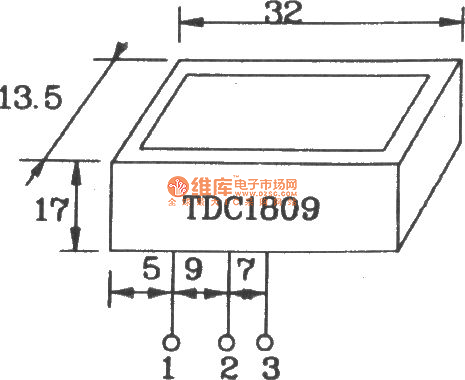

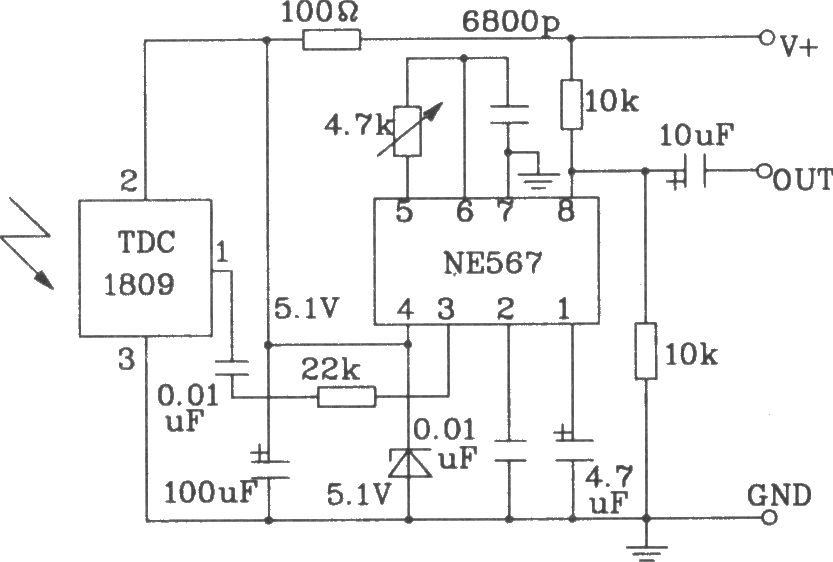

TDC1808/1809 RF wireless transmitter / receiver module-specific can easily form a variety of wireless remote control device. TDC1808 shape pin map. TDC1809 shape pin map. TDC1808/1809 remote control transmitter / receiver module is widely used in a frequency range applications. Transmitter module TDCl808n has been launched in the 250 - 350MHz frequency modulatio at the factory. There are l0 different frequencies available to use. TDCl808 uses A, B two connection methods: No modulation signal or external modulation of various signal transmission. Ssuch as: audio modulation or digital modulation. Therefore, you can connect a variety of modulated signals to form the transmitter circuit. The operating voltage of TDCl808 factory is set at 9V. The plant can also produce l.5 ~ 18V power supply voltage of transmitter modules. The operate voltage of receiver module TDCl809 is 5.1V. If you need a 5Vworking voltage, you can also ask for customized module from the plant. RF channel remote control transmitter circuit composed of TDC. RF channel remote control receiving circuit composed of TDC1809. Multi-channel RF remote control transmitter circuit composed of TDC. Multi-channel RF remote control receiver circuit composed of TDC.
