BASIC_DIGITAL_THERMOMETER_KELVIN_SCALE

Published:2009/6/29 1:30:00 Author:May | From:SeekIC

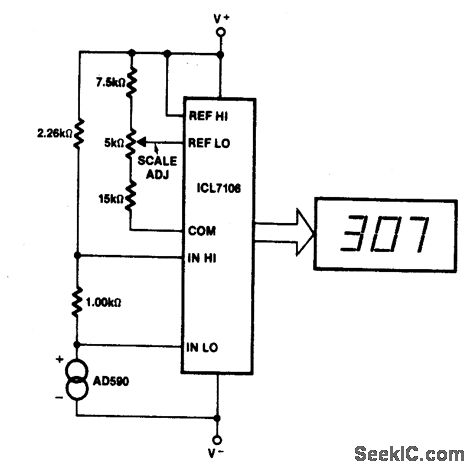

The Kelvin scale vers1on reads from0 to 1999°K theoretically，and from 99Q°K to 473°K actually. The 2.26 K resistor brings themput within the ICL7106 VCM range∶twogeneral-purpose silicon diodes or an LED maybe subsituted．
