12 coil Pulse Monopole/Generator

Published:2012/9/16 21:50:00 Author:Ecco | Keyword: 12 coil, Pulse Monopole, Generator | From:SeekIC

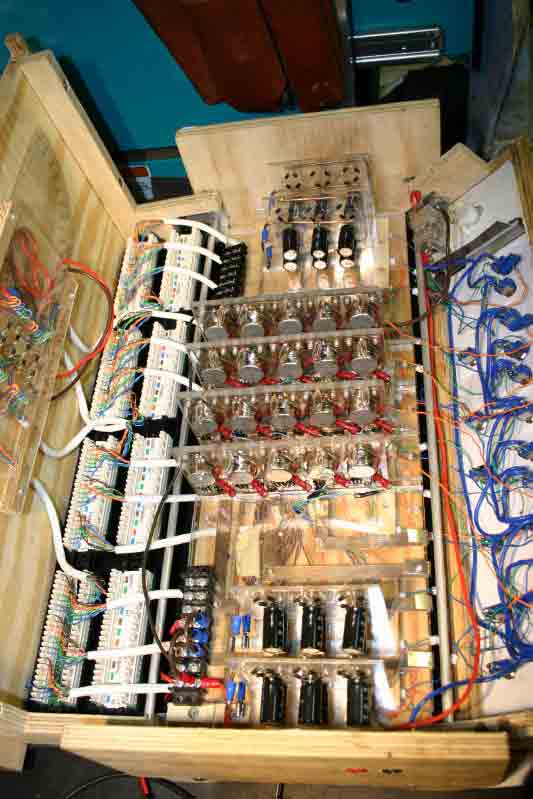

Fully functional Bedini motor pulse charger powered by micro-controller. All variables (coil sensitivity thresh-hold and motor power (current) consumption) controlled by software program. I can manipulate triggering of motor and triggering of cap pulse disharge. Results have convinced me this is the cheaper way to build and experiment. I haven't blown any components yet with this experiment with no protection Neon (Ne2) on transistor.
