DELAYED_PULSE_GENERATOR

Published:2009/7/16 22:07:00 Author:Jessie | From:SeekIC

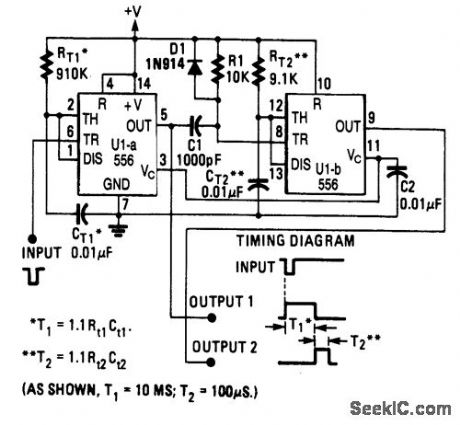

This circuit produces a delayed pulse width of 1.1(Rt2Ct2). The delay is given by T=1.1(Rt1Ct1). A 556 dual timer can be used.
