10_kHz_SINE_COSlNE

Published:2009/7/6 0:52:00 Author:May | From:SeekIC

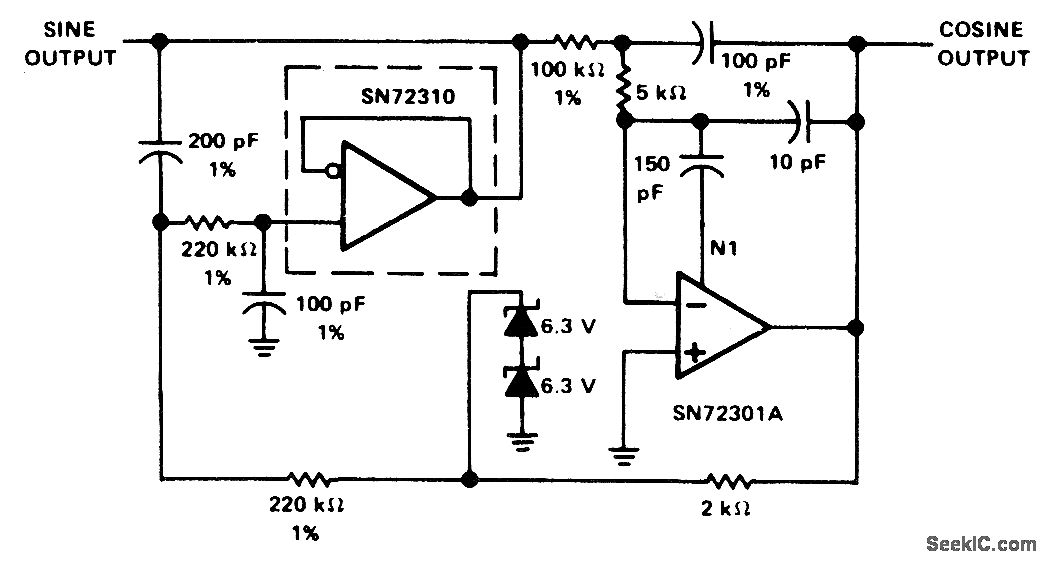

Combination of SN72310 voltage-follower opamp and SN 72301A high-performance opamp gives two outputs differing in phase by 900. Supply is ±18 V.- The Linear and Interface Circuits Data Book for Design Engineers, Texas Instruments, Dallas, TX, 1973, p 4-40.
