Three-phase square wave signal oscillator circuit

Published:2011/11/21 2:11:00 Author:Ecco | Keyword: Three-phase , square wave, signal oscillator | From:SeekIC

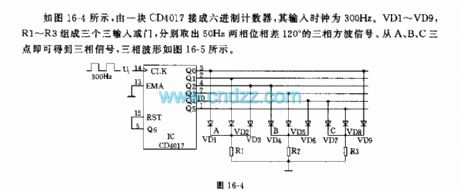

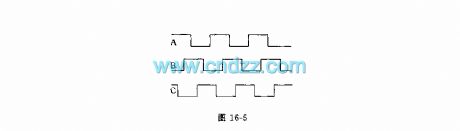

As shown in Figure 16-4 , a CD4017 is connected as senary counter, and the input clock is 300Hz.VD1 ~ VD9, R1 ~ R3 form the three three-input OR gates, which can respectively get two 50Hz three-phase wave signal with 120 degrees phase difference. A, B, C can obtain three -phase signal, and it is shown in Figure 16-5.
