Features:

· Multiplexed real-time and stored data
· A and B output sink capability of 48 mA, source capability of 24 mA
· Guaranteed latchup protection
· High impedance glitch free bus loading during entire power up and power down cycle
· Nondestructive hot insertion capability
· Standard Microcircuit Drawing (SMD) 5962-9324201


Pinout

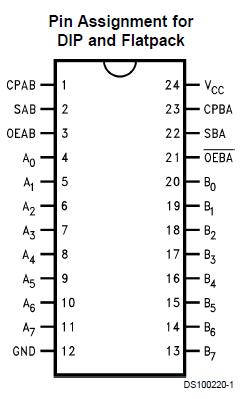

Connection Diagram


Specifications

Storage Temperature                       −65 to +150
Ambient Temperature under Bias      −55 to +125
Junction Temperature under Bias
    Ceramic                                       −55 to +175
VCC Pin Potential to
    Ground Pin                                     −0.5V to +7.0V
Input Voltage (Note 3)                       −0.5V to +7.0V
Input Current (Note 3)                −30 mA to +5.0 mA
Voltage Applied to Any Output
  in the Disable or
    or Power-Off State                        −0.5V to +5.5V
  in the HIGH State                               −0.5V to VCC
Current Applied to Output
  in LOW State (Max)            twice the rated IOL (mA)
DC Latchup Source Current                         −500 mA
Over Voltage Latchup (I/O)                                  10V


Description

The 54ABT652 consists of bus transceiver circuits with D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus of 54ABT652 will be clocked into the registers as the appropriate clock pin goes to HIGH logic level. Output Enable pins (OEAB, OEBA) are provided to control the transceiver function.
