Purchase ADS5546IRGZTG4, In-stock ADS5546IRGZTG4 From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

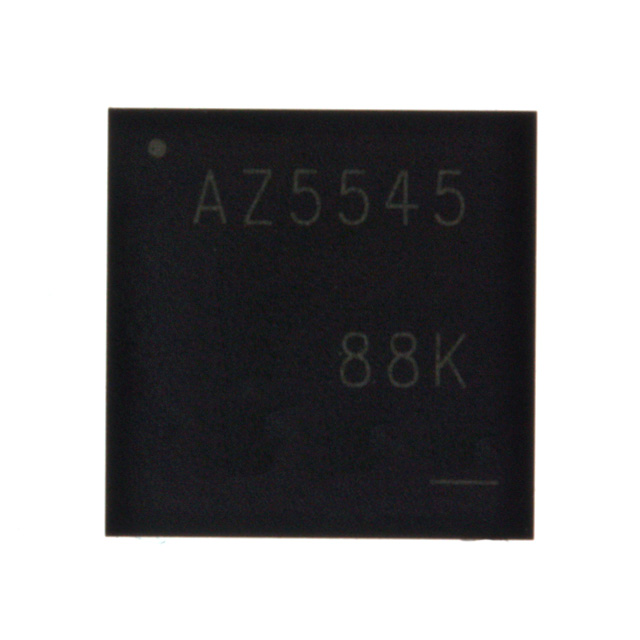

ADS5546IRGZTG4 Product Image

ADS Series Datasheet download

Five Points

Part Number: ADS5546IRGZTG4

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC ADC 14BIT 190MSPS 48-VQFN

Price Break

250

Unit Price

93.71252

Extended Price

23428.13

(All prices are in USD) Prices for reference only
Urgent Purchase

ADS5546IRGZTG4 General Description

IC ADC 14BIT 190MSPS 48-VQFN

ADS5546IRGZTG4 Parameters

Technical/Catalog InformationADS5546IRGZTG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Bits14
Package / Case48-VQFN
Data InterfaceSerial/Parallel
PackagingTape & Reel (TR)
Sampling Rate (Per Second)190M
Operating Temperature-40°C ~ 85°C
Voltage Supply SourceAnalog and Digital
Number of Inputs and Type1 Differential, Unipolar
Number of Converters1
Power Dissipation (Max)1.29W
Drawing Number296; 4204101; RGZ; 48
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADS5546IRGZTG4
ADS5546IRGZTG4
