Product Details

Description



Features:

1) Low current dissipation (when VCC = 2.4V, the quiescent current is 4.9mA).
2) Suitable for use in digital audio equipment (voltage
  gain: GV = 11.8dB, output noise voltage: VNO = 102dBm typ.).
3) Bass boost circuit.
4) AVC (Auto Volume Control) circuit, for output limiting.
5) Standby switch.
6) Mute switch.
7) Ripple filter.
8) No output coupling capacitor required.
9) Beep circuit.
10) SSOP-A20 package.


Application

Portable CD and MD players

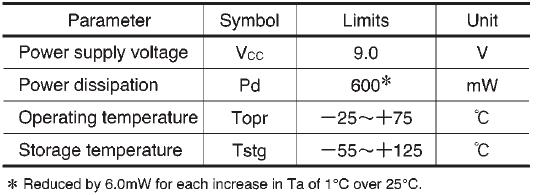

Specifications

Connection Diagram


Description

The BA3574BFS is a headphone driver with a fixed-gain bass boost circuit and an AVC circuit that keeps the output below a fixed level. It features low current dissipation, and low output noise, and is ideal for use in portable digital audio equipment.
