BA3960

Series: -
Current - Limit (Min): -
Mounting Type: Through Hole
Regulator Topology: Positive Adjustable
Voltage - Dropout (Typical): -
Number of Regulators: 2
Packaging: Tube
Manufacturer: Rohm Semiconductor
Operating Temperature: -25°C ~ 75°C
Voltage - Output: 1.5 V ~ 21 V
Voltage - Input: 4.5 V ~ 22 V
Current - Output: 500mA (Min), 800mA (Min)
Package / Case: 12-SIP + Tab
Supplier Device Package: 12-HSIP-B


Features:

1) Containing two circuits of variable-output series regulator.
2) PNP output transistor characterized by low saturation voltage.
3) Logic control allowing ON /OFF switching of output.
4) No supply current when both circuits are off.
5) Output current limit circuit protects the IC against short-circuiting damage.
6) Compact HSIP-B12 package allows a large power dissipation.
7) Thermal protection circuit prevents heat damage to the IC.


Application

Audio and video systems, CD and CD-ROM systems, computer peripheral devices, industrial equipment

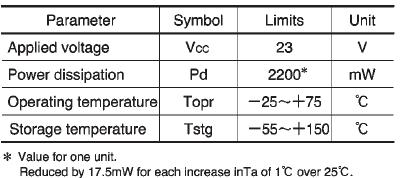

Specifications




Description

The BA3960 is a dual circuit, variable output, series regulator. PNP output transistors allow minimum voltage differential between input and output. Each of the two circuits can be turned on or off independently by using the system logic control. When both circuits are off, the IC keeps a standby state with no supply current.

Parameters:

Technical/Catalog Information	BA3960
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Regulator Type	Multiple Output
Package / Case	12-SIP + Tab
Packaging	Tube
Regulator Topology	Positive Adjustable
Current - Output	500mA, 700mA
Voltage - Output	1.5 ~ 21 V
Operating Temperature	-25°C ~ 75°C
Voltage - Input	4.5 ~ 22 V
Number of Regulators	2
Current - Limit (Min)	800mA
Current Short Circuit (Isc)	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA3960 BA3960
