BA6161N

DC/DC Switching Controllers CONV DCDC SNGL STPUP 3V TO 16V

product image

BA6161N Picture
See larger image
SeekIC No. : 00493179 Detail

BA6161N: DC/DC Switching Controllers CONV DCDC SNGL STPUP 3V TO 16V

BA6161N Data Sheet

floor Price/Ceiling Price

US $ .61~.61 / Piece | Get Latest Price
Part Number:
BA6161N
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1500
  • Unit Price
  • $.61
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Input Voltage :
Switching Frequency :
Output Voltage :
Output Current :
Number of Outputs :
Duty Cycle (Max) :
Maximum Operating Temperature :
Mounting Style :
Package / Case :


Features:

1) Output changes are small against input voltage variations.
2) Temperature compensation circuit provides stable output.
3) Reduced number of attached parts.




Application

Electronic tuners in televisions and other electronic
equipment that requires high voltage (30~45V).

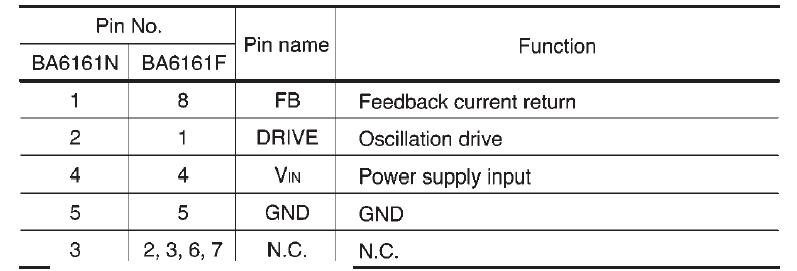

Pinout

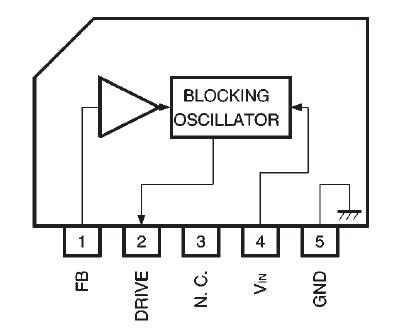

Connection Diagram


Specifications

Connection Diagram


Parameters:

Technical/Catalog InformationBA6161N
VendorRohm Semiconductor
CategoryIntegrated Circuits (ICs)
TypeSwitched Capacitor (Charge Pump)
Number of Outputs1
Voltage - Input3 ~ 16 V
Voltage - Output30 ~ 35 V
Current - Output3mA
Power - Output400mW
Package / Case5-SIP
PackagingTape & Reel (TR)
Internal Switch(s)No
SynchronousNo
Rds (On)-
Operating Temperature-20°C ~ 75°C
Frequency - Switching100kHz
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BA6161N
BA6161N
