Part Number: BA6195



MFG: ROHM

Package Cooled: DIP



Description: The BA6195FP-Y and BA6195 are ICs for CD players and have one internal BTL power driver circuit and on...


Urgent Purchase

BA6195 General Description


The BA6195FP-Y and BA6195 are ICs for CD players and have one internal BTL power driver circuit and one operational amplifier circuit with a wide output dynamic range. The wide dynamic range and internal operational amplifier make these ICs ideal for low voltage drive. The driver's internal level shift circuit reduces the number of attached components needed.

BA6195 Maximum Ratings

Parameter Symbol Limits Unit
Power supply voltage Vcc

 18 V
Power dissipation BA6195FP-Y Pd 1450*1 mW
BA6195 1250*2
Operating temperature Topr -35~+85
Storage temperature Tstg -55~+150

BA6195 Features

 HSOP 25-pin power package allows for miniaturization of applications (BA6195FP-Y).
 Wide dynamic range. (typically 5.4V when VCC = 8V, RL = 8)
 Internal thermal shutdown circuit with hysteresis.
 Internal level shift circuit, for a minimal number of attached components.
 Internal operational amplifier with wide dynamic range.

BA6195 Typical Application

CD players, CD-ROM drives and other optical disc devices

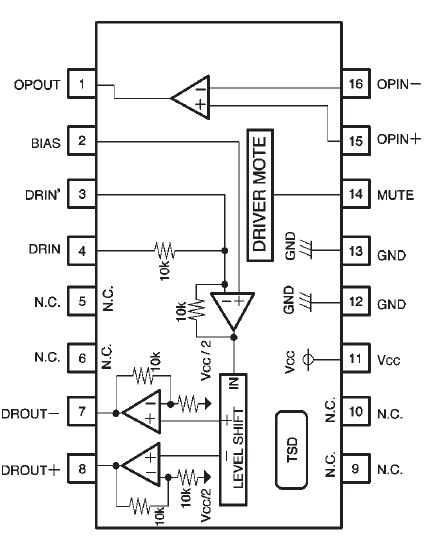

BA6195 Connection Diagram

BA6195 Connection Diagram
