Features:

4-channel BTL driver in a 28-pin HSOP package, for miniaturization of applications.
Gain is adjustable with an attached resistor.
Internal thermal shutdown circuit.
Internal 5V regulator. (required attached PNP transistor)
Internal standard operational amplifier.

Application

CD players, CD-ROM drives and other optical disc devices

Pinout

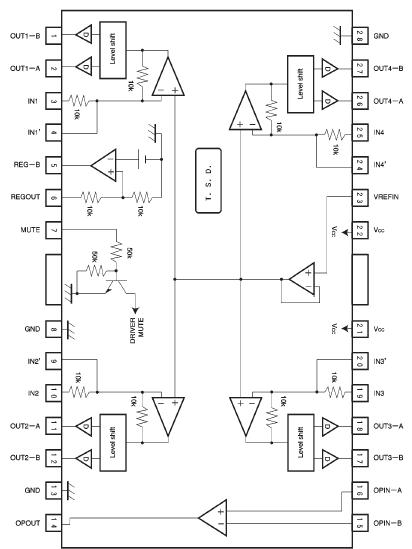

Connection Diagram

Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	V_cc	18	V
Power dissipation	P_d	1700^*1	mW
Operating temperature	T_opr	-35~+85
Storage temperature	T_stg	-55~+150
Maximum current	I_OMax	1.4^*2	A

Description

The BA6196FP is an IC designed CD players and has an internal 4-channel BTL driver, 5V regulator (attached PNP transistor required), standard operational amplifier and a thermal shutdown feature. The driver has gain adjustment input pins for each channel, allowing gain to be set to the desired value. Also, the internal level shift circuit helps reduce the number of attached components.
