Part Number: BA6897FP



MFG: ROHM

Package Cooled: SMD



Description: The BA6897S and BA6897FP are a 4-channel BTL driver for CD player motors and actuators. It has an inte...


Urgent Purchase

BA6897FP General Description


The BA6897S and BA6897FP are a 4-channel BTL driver for CD player motors and actuators. It has an internal 5V regulator and standard operational amplifier, and is suited to a wide range of applications.

BA6897FP Maximum Ratings

Parameter Symbol Limits Unit
Power supply voltage Vcc

 18 V
Power dissipation BA6897S Pd 1.7*1 W
BA6897FP 1.7*2
Operating temperature Topr -35~+85
Storage temperature Tstg -55~+150

BA6897FP Features

 Minimal number of external components.
Driver gain is adjustable with just one attached resistor.
Internal 5V regulator (attached PNP transistor necessary).
Internal standard operational amplifier.
Internal thermal shutdown circuit.

BA6897FP Typical Application

CD players, CD-ROM drives

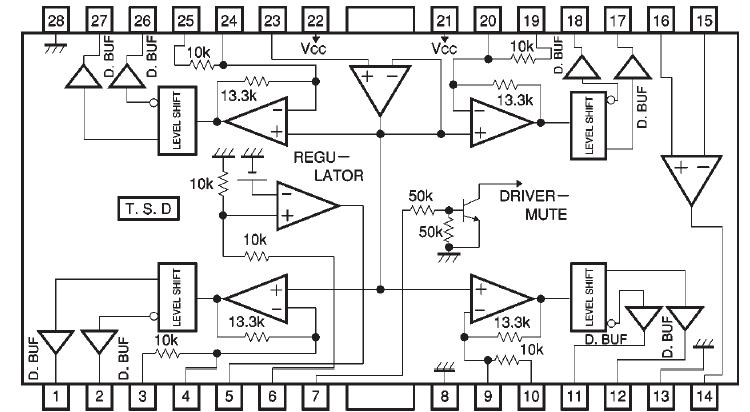

BA6897FP Connection Diagram

BA6897FP Connection Diagram
