BA8206

Series: -
Interface: -
Current - Supply: -
Packaging: Tube
Number of Circuits: 1
Mounting Type: Through Hole
Package / Case: 8-DIP (0.300", 7.62mm)
Supplier Device Package: 8-DIP
Power (Watts): 500mW
Manufacturer: Rohm Semiconductor
Operating Temperature: -25°C ~ 75°C
Function: Tone Generator
Voltage - Supply: 38V


Features:

 Low current dissipation.
Withstands up to 40V.
 Operation initiation current dissipation can be changed using RSL pin.
Pin layout is compatible with the BA8205, BA6565A, and ML8205.

Application

Telephones, multi-function telephones, telephone answering machines, facsimiles, equipment involving telephones

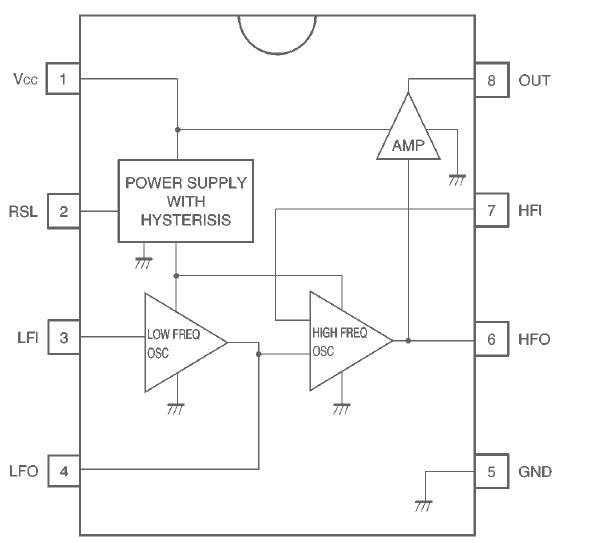

Pinout

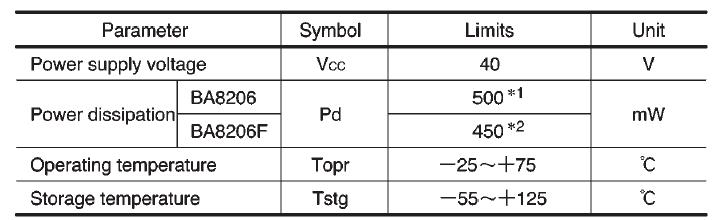

Specifications




Description

The BA8206 and BA8206F are tone ringer ICs which produce a bell sound from a ringing signal. The frequency of the bell sound can be varied by changing the constants of the external resistance and capacitors.

The operation initiation current dissipation can be changed at the RSL pin.

Also, the output load can be selected, as a piezoelectric buzzer, a transformer coupled speaker, or other similar devices.
