Part Number: BLF1049



MFG: TOSHIBA

Package Cooled: MODULE

D/C: 121

Description: 125 W LDMOS power transistor for base station applications at frequencies from 800 MHz to 1000 MHz.


Urgent Purchase

BLF1049 General Description


125 W LDMOS power transistor for base station  applications at frequencies from 800 MHz to 1000 MHz.

BLF1049 Maximum Ratings

SYMBOL PARAMETER MIN. MAX. UNIT
VDS drain-source voltage - 75 V
VGS gate-source voltage - ±15 V
Tstg storage temperature -65 150 °C
Tj junction temperature - 200 °C

BLF1049 Features

` Typical performance at a supply voltage of 27 V:
   1-tone CW; IDQ = 1000 mA
  Output power = 125 W
  Gain = 16.5 dB
  Efficiency = 54%
  EDGE output power = 45 W (AV)
  ACPR400 = -64 dBc at 400 kHz (EDGE; IDQ = 750 mA)
  EVM = 2% rms (AV) (EDGE; IDQ = 750 mA)
` Easy power control
` Excellent ruggedness
` High power gain
` Excellent thermal stability
` Designed for broadband operation (800 to 1000 MHz)
` Internally matched for ease of use.

BLF1049 Typical Application

· RF power amplifier for GSM, EDGE and CDMA base stations and multicarrier applications in the 800 to 1000 MHz frequency range.

BLF1049 Connection Diagram

BLF1049 Connection Diagram

BLF1049 datasheet

BLF1049
PDF/DataSheet Download

Find BLF1049 Suppliers

  • ·BLF0810-180
  • PHILIPS [Philips Semiconductors]
  • Base station LDMOS transistors
  • 120279 KB
  • BLF0810-180 Datasheet Download
  • ·BLF0810-90
  • Philips
  • Base station LDMOS transistors
  • 150834 KB
  • BLF0810-90 Datasheet Download
  • ·BLF0810S-180
  • PHILIPS [Philips Semiconductors]
  • Base station LDMOS transistors
  • 120279 KB
  • BLF0810S-180 Datasheet Download
  • ·BLF0810S-90
  • Philips
  • Base station LDMOS transistors
  • 150834 KB
  • BLF0810S-90 Datasheet Download
  • ·BLF1
  • LITTELFUSE [Littelfuse]
  • Axial Lead and Cartridge Fuses - Midget
  • 80715 KB
  • BLF1 Datasheet Download
  • ·BLF1/2
  • LITTELFUSE [Littelfuse]
  • Axial Lead and Cartridge Fuses - Midget
  • 80715 KB
  • BLF1/2 Datasheet Download
  • ·BLF10
  • LITTELFUSE [Littelfuse]
  • Axial Lead and Cartridge Fuses - Midget
  • 80715 KB
  • BLF10 Datasheet Download
  • ·BLF1043
  • PHILIPS [Philips Semiconductors]
  • UHF power LDMOS transistor
  • 53937 KB
  • BLF1043 Datasheet Download

Related Part Number

BLF1049 Relative Products

  • BLF1048

    BLF1048

    Silicon N-channel enhancement mode lateral D-MOS transistor BLF1048 encapsulated in a 2-lead flange package (SOT502A) with a ceramic cap. The common source is connected to the mounting flange.

  • BLF1047

    BLF1047

    Silicon N-channel enhancement mode lateral D-MOS transistor BLF1047 encapsulated in a 2-lead flange package (SOT541A) with a ceramic cap. The common source is connected to the mounting flange.

  • BLF1046

    BLF1046

    Silicon N-channel enhancement mode lateral D-MOS transistor BLF1046 encapsulated in a 2-lead flange package (SOT467C) with a ceramic cap. The common source is connected to the mounting flange.

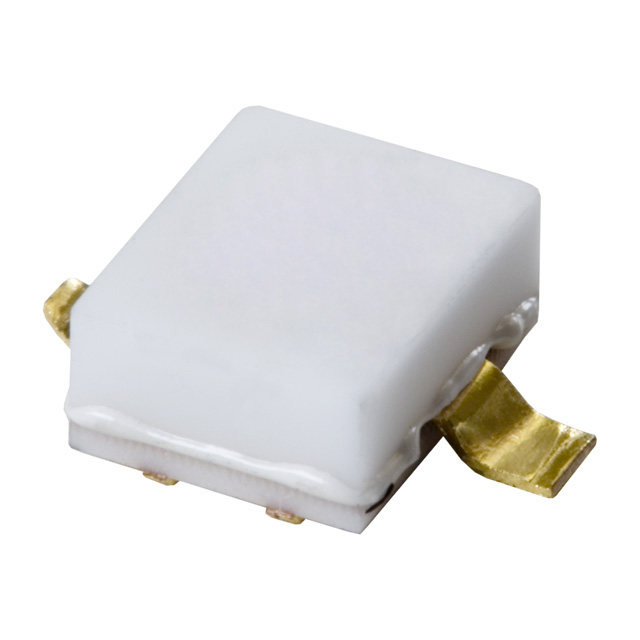

  • BLF1043,112
