Product Details

Description



Features:

* High power gain
* Double stage internal input matching for high input impedance
* Diffused emitter-ballasting resistors enhances ruggedness
* Gold metallization for high reliability.

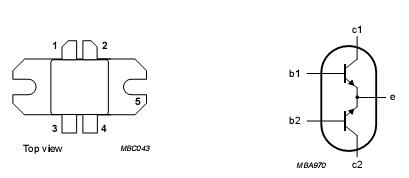

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 50 V
VCES collector-emitter voltage open base  27 V
VEBO emitter-base voltage open collector 3.5 V
IC,IC(AV) collector current DC or average value 4 A
ICM peak collector current peak value f > 1 MHz 8 A
Ptot total power dissipation f > 1 MHz;Ts = 103 °C
(note 1)		 87 W
Tstg storage temperature -65 +150
Tj operating junction temperature 175



Description

The BLV58 is a common emitter epitaxial npn silicon planar transistor designed for high linearity class-A operation in UHF (bands 4 and 5) TV transmitters and transposers.

The BLV58 is incorporated in a push-pull SOT289 flange envelope with a ceramic cap, which is utilized with the emitters connected to the flange.
