Part Number: BU2725DX



MFG: PHI

Package Cooled: TO3P-3

D/C: 05+

Description: High voltage, high-speed switching npn transistor in a plastic full-pack envelope intended for use in horizontal deflec...


Urgent Purchase

BU2725DX General Description


High voltage, high-speed switching npn transistor in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers. Designed to withstand VCES  pulses up to 1700V.

BU2725DX Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT

VCESM
IC
ICM
IB
IBM
-IB(AV)
IBM
Ptot
Tstg
Tj

 Collector to emitter voltage
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Reverse base current
Reverse base current peak value1
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
average over any 20 ms period
Ths25
-
-
-
-
-
-
-
-
-
-65
-
1700
12
30
12
20
200
9
45
150
150
V
A
A
A
A
mA
A
W

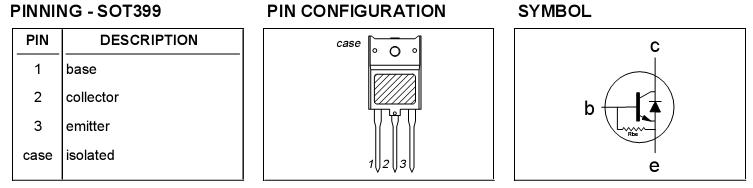

BU2725DX Connection Diagram

BU2725DX Connection Diagram

BU2725DX datasheet

BU2725DX
PDF/DataSheet Download
