Product Details

Description

Pinout

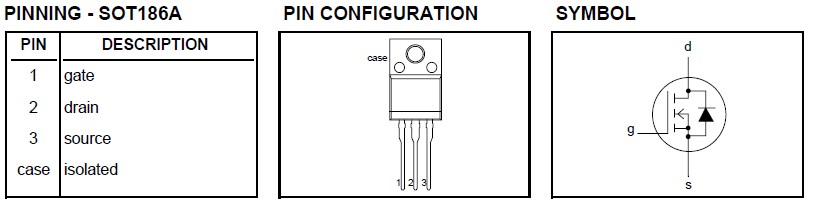

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.		UNIT
V_DS V_DGR ±V_GS I_D I_D I_DM P_tot T_stg T_j	Drain-source voltage Drain-gate voltage Gate-source voltage Drain current(DC) Drain current(DC) Drain current (pulse peak value) Total power dissipation Stroage temperature Junction Temperature	- R_GS=20 k - T_mb=25 T_mb=100 T_mb=25 T_mb=25 - -	- - - - - - - -55 -	100 100 30		V V V A A A W
				-100A 9 5.7 36	-100B 8 5 32
				25 150 150

Description

N-channel enhancement mode field-effect power transistor BUK473-100A in a plastic full-pack envelope. The device is intended foruse in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.
