BY329X

Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Isolated mounting tab

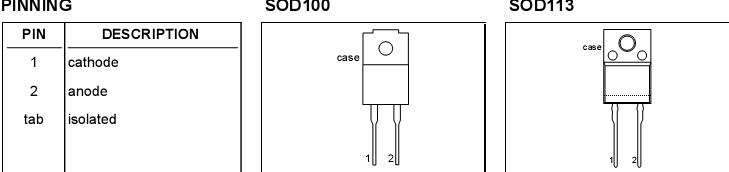

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRSM	Peak non-repetitive peak reverse voltage			-800 -1000 -1200 800 1000 1200	V
VRRM	Peak repetitive reverse voltage			800 1000 1200	V
VRWM	Crest working reverse voltage			600 800 1000	V
I F(AV)	Average forward current1	square wave; = 0.5; Ths 83 sinusoidal; a = 1.57; Ths 90		8 7	A
I F(RMS)	RMS forward current			11	A
IFRM	Peak repetitive forward current	t = 25 s; = 0.5; T 83		16	A
IFSM	Peak non-repetitive forward current	t = 10 ms t = 8.3 ms sinusoidal; Tj= 150 prior to surge; with reapplied VRWM(max)		65 71	A

I2t	I2t for fusing	t = 10 ms		28	A2s
Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.The BY329X are intended for use in TV receivers,monitorsandswitchedmodepowersupplies.

The BY329F series is supplied in the conventional leaded SOD100 package.
The BY329X series is supplied in the conventional leaded SOD113 package.
