C161PI

Features: • High Performance 16-bit CPU with 4-Stage Pipeline 80 ns Instruction Cycle Time at 25 MHz CPU Clock 400 ns Multiplication (16 ´ 16 bit), 800 ns Division (32 / 16 bit) Enhanced Boolean Bit Manipulation Facilities Additional Instructions to Support HLL and Operating System...

product image

C161PI Picture
See larger image
SeekIC No. : 004308032 Detail

C161PI: Features: • High Performance 16-bit CPU with 4-Stage Pipeline 80 ns Instruction Cycle Time at 25 MHz CPU Clock 400 ns Multiplication (16 ´ 16 bit), 800 ns Division (32 / 16 bit) Enhan...

C161PI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
C161PI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance 16-bit CPU with 4-Stage Pipeline
  80 ns Instruction Cycle Time at 25 MHz CPU Clock
  400 ns Multiplication (16 ´ 16 bit), 800 ns Division (32 / 16 bit)
  Enhanced Boolean Bit Manipulation Facilities
  Additional Instructions to Support HLL and Operating Systems
  Register-Based Design with Multiple Variable Register Banks
  Single-Cycle Context Switching Support
  16 MBytes Total Linear Address Space for Code and Data
  1024 Bytes On-Chip Special Function Register Area
• 16-Priority-Level Interrupt System with 27 Sources, Sample-Rate down to 40 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC)
• Clk. Generation via on-chip PLL (1:1.5/2/2.5/3/4/5), via prescaler or via direct clk. inp.
• On-Chip Memory Modules
  1 KByte On-Chip Internal RAM (IRAM)
  2 KBytes On-Chip Extension RAM (XRAM)
• On-Chip Peripheral Modules
  4-Channel 10-bit A/D Converter with Programm. Conversion Time down to 7.8 ms
  Two Multi-Functional General Purpose Timer Units with 5 Timers
  Two Serial Channels (Synchronous/Asynchronous and High-Speed-Synchronous)
  I2C Bus Interface (10-bit Addressing, 400 KHz) with 2 Channels (multiplexed)
• Up to 8 MBytes External Address Space for Code and Data
  Programmable External Bus Characteristics for Different Address Ranges
  Multiplexed or Demultiplexed External Address/Data Buses with 8-Bit or 16-Bit Data Bus Width
  Five Programmable Chip-Select Signals
• Idle and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
• On-Chip Real Time Clock
• Up to 76 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards
• On-Chip Bootstrap Loader
• 100-Pin MQFP / TQFP Package


Pinout

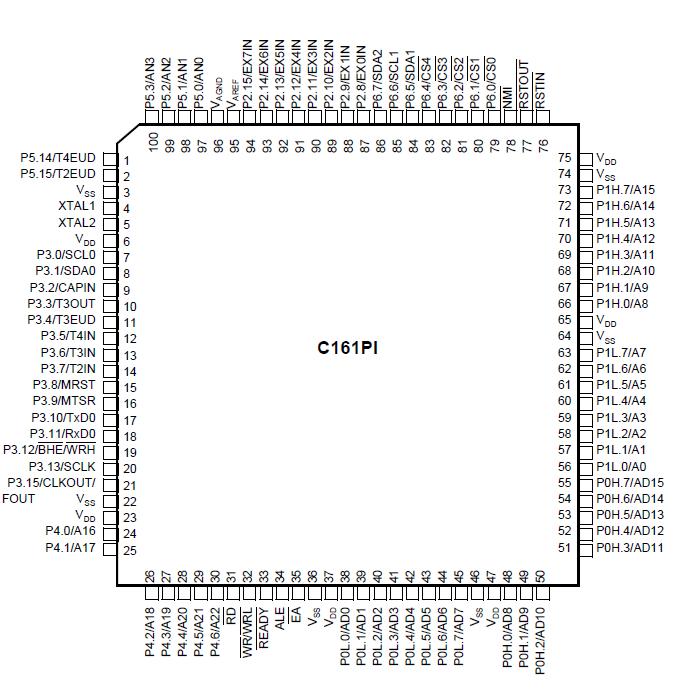

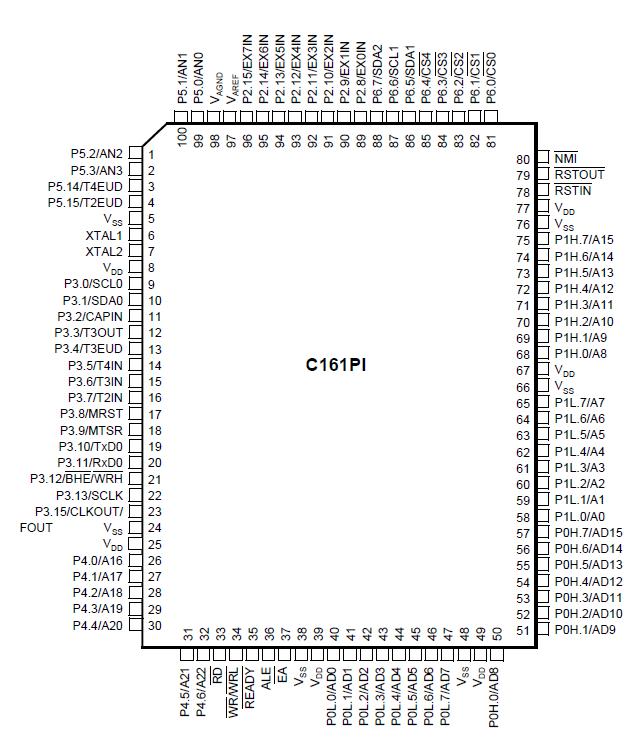

Connection Diagram Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Notes
min. max.
Storage temperature TST -65 150 °C
Voltage onVDD pins with respect to ground (VSS) VDD -0.5 6.5 V
Voltage on any pin with respect to ground (VSS) VIN -0.5 VDD+0.5 V
Input current on any pin during overload condition -10 10 mA
Absolute sum of all input currents during overload condition - - |100| mA
Power dissipation PDISS - 1.5 W
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. During absolute maximum rating overload conditions (VIN>VDD or VIN<VSS) the voltage on VDD pins with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.


Description

The C161PI is a derivative of the Infineon C166 Family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance (up to 8 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The C161PI derivative is especially suited for cost sensitive applications.
