CY7C1399-12ZC

The CY7C1399 is a high-performance 3.3V CMOS Static RAM
organized as 32,768 words by 8 bits. Easy memory expansion
is provided by an active LOW Chip Enable (CE) and active
LOW Output Enable (OE) and three-state drivers. The device
has an automatic power-down feature, reducing the power
consumption by more than 95% when deselected.

An active LOW Write Enable signal (WE) controls the writing/ reading operation of the memory. When CE and WE inputs are both LOW, data on the eight data input/output pins (I/O0 through I/O7) is written into the memory location addressed by the address present on the address pins (A0 through A14). Reading the device is accomplished by selecting the device and enabling the outputs, CE and OE active LOW, while WE remains inactive or HIGH. Under these conditions, the contents of the location addressed by the information on address pins is present on the eight data input/output pins.

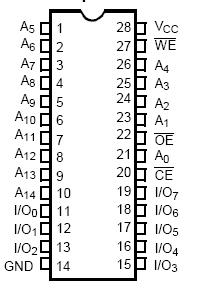

The input/output pins remain in a high-impedance state unless the chip is selected, outputs are enabled, and Write Enable (WE) is HIGH. The CY7C1399 is available in 28-pin standard 300-mil-wide SOJ and TSOP Type I packages.
