DC/DC Converters Mini 2W Iso Unreg DC/DC Converter

product image

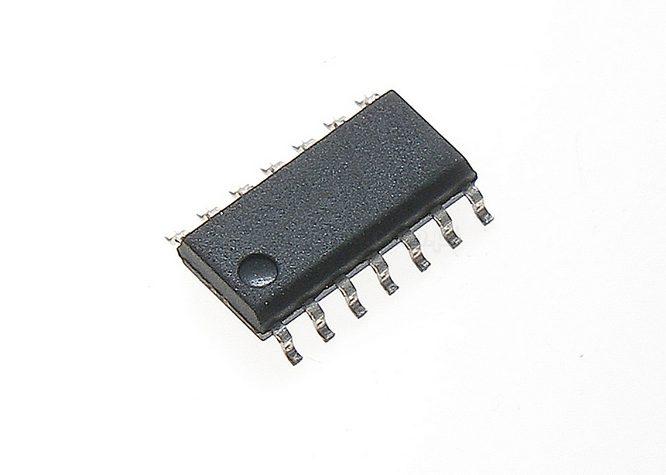

DCP020505P Picture
SeekIC No. : 002714807 Detail

DCP020505P: DC/DC Converters Mini 2W Iso Unreg DC/DC Converter

floor Price/Ceiling Price

US $ 5.54~6.82 / Piece | Get Latest Price
Part Number:
Texas Instruments
Supply Ability:

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • Unit Price
  • $6.82
  • $6.21
  • $5.74
  • $5.54
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions


evaluate  (4.8 stars)

Upload time: 2023/12/1

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Isolated Output Power : 2 W
Input Voltage Range : 4.5 V to 5.5 V Number of Outputs : 1
Output Voltage (Channel 1) : 5.25 V Output Current (Channel 1) : 400 mA
Mounting Style : Through Hole Package / Case Size : PDIP-7


Input Voltage (nominal) :
Output Voltage (Channel 2) :
Output Current (Channel 2) :
Number of Outputs : 1
Product : Isolated
Input Voltage Range : 4.5 V to 5.5 V
Output Current (Channel 1) : 400 mA
Output Power : 2 W
Package / Case Size : PDIP-7
Mounting Style : Through Hole
Output Voltage (Channel 1) : 5.25 V


· Up To 89% Efficiency
· Thermal Protection
· Device-to-Device Synchronization
· SO-28 Power Density of 106W/in3 (6.5W/cm3 )
· EN55022 Class B EMC Performance
· UL1950 Recognized Component
· JEDEC 14-Pin and SO-28 Packages


· Point-of-Use Power Conversion
· Ground Loop Elimination
· Data Acquisition
· Industrial Control and Instrumentation
· Test Equipment


  Connection Diagram


over operating free-air temperature range (unless otherwise noted) (1)
DCP02 Series
Input Voltage 5V input models
12V input models
12V input models
24V input models
Storage temperature range
60 to +125

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


The DCP02 series is a family of 2W, isolated,unregulated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP02 series provides extra features of DCP02 series such as output disable and synchronization of switching frequencies.

The use of a highly integrated package of DCP02 series design results in highly reliable products with power densities of 79W/in3 (4.8W/cm3) for DIP-14, and 106W/in3 (6.5W/cm3) for SO-28. This combination of features and small size makes the DCP02 suitable for a wide range of applications.

This integrated circuit of DCP02 series can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage DCP02 series can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the DCP02 series not to meet its published specifications.


Technical/Catalog InformationDCP020505P
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Outputs1
Voltage - Input4.5 ~ 5.5 V
Voltage - Output5V
Current - Output400mA
Power - Output2W
Package / Case14-DIP (300 mil, 7 Leads)
Internal Switch(s)Yes
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching400kHz
Drawing Number296; 4202489; NVA; 7
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DCP020505P
