DM9081

Features: *Repeater functions comply with IEEE 802.3 Repeater Unit specification*Eight Integral 10BASE-T transceivers utilize the required pre-distortion transmission technique*Two Attachment Unit Interface (AUI) ports allow connection with 10BASE5 (Ethernet) and 10BASE2 (Cheapernet) networks*Desi...

product image

DM9081 Picture
See larger image
SeekIC No. : 004327364 Detail

DM9081: Features: *Repeater functions comply with IEEE 802.3 Repeater Unit specification*Eight Integral 10BASE-T transceivers utilize the required pre-distortion transmission technique*Two Attachment Unit I...

DM9081 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DM9081
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Repeater functions comply with IEEE 802.3 Repeater Unit specification
*Eight Integral 10BASE-T transceivers utilize the required pre-distortion transmission technique
*Two Attachment Unit Interface (AUI) ports allow connection with 10BASE5 (Ethernet) and 10BASE2 (Cheapernet) networks
*Design a Dumb Hub in minimum mode by using minimum external logic that can respond to Link,Carrier Sense and Collision Status from LED
*Supports one LED output per port for additional status indicators such as Link, Partition, Carrier Sense, etc.
*Built-in Jabber LED reports global Jabber information of the DM9081 Hub
*Built-in Traffic LED indicates Hub global 10MHz bandwidth utilization status
*Expandable to accommodate two DM9081 connections,with no external logic required
*On board PLL, Manchester encoder/decoder and FIFO
*Expandable to accommodate increased number of repeater ports. Recommended IC cascade number: under 3 and inclusive
*Preamble loss effects eliminated by deep FIFO
*Each port can be isolated (partitioned) and reconnected separately
*Twisted Pair Link Test capability
*Full amplitude and timing regeneration for retransmitted signals
*Low power CMOS process with single 5V supply
*100-pin QFP package


Pinout

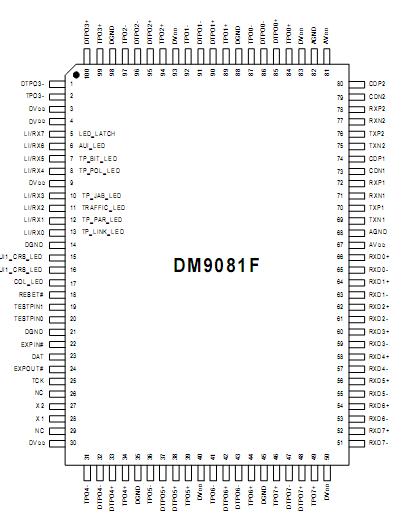

Connection Diagram


Specifications

Supply Voltage (VDD)...................... ...... -0.5V to +7.0V
DC Input Voltage (VIN )...................-0.5V to VCC +0.5V
DC Output Voltage (VOUT)..............-0.5V to VCC +0.5V
Storage Temperature Range (Tstg).......-65to +150
Power Dissipation (PD).........................................1.2W
Lead Temp. (TL) (Soldering, 10sec.).....................260
ESD Rating (Rzap=1.5K, Czap=100pF)................2000V




Description

  The 10BASE-T Hub Controller (DM9081) provides a system level solution for designing IEEE-compliant 802.3 repeaters that incorporate 10BASE-T transceivers. DM9081 integrates the repeater functions specified by section 9 of the IEEE 802.3 standard. The Twisted Pair transceiver is compliant with 10BASE-T standards. The DM9081 provides eight integral Twisted Pair Media Attachment Units (MAUs) and two Attachment Unit Interface (AUI) ports in a 100-pin QFP package. The total number of ports per repeater unit can be increased by connecting multiple DM9081 chips via their expansion ports. The DM9081 supports LED drivers to monitor port status. It displays Link, Carrier Sense,Collision, Partition, and Bit Rate Error Status. In minimum mode, Link, Carrier Sense, and Collision Status can be displayed without external TTL devices.
