Part Number: EL2020C
MFG: ELANTEC
Description: The EL2020 is a fast settling wide bandwidth amplifier opti-mized for gains between -10 and +10 Built ...
- Table of contents:
EL2020C
-
Suppliers
DataSheet
General Description
EL2020C General Description
The EL2020 is a fast settling wide bandwidth amplifier opti-mized for gains between -10 and +10 Built using the Elantec monolithic Complementary Bipolar process this amplifier uses current mode feedback to achieve more bandwidth at a given gain then a conventional voltage feedback operational amplifi-er
The EL2020 will drive two double terminated 75 coax cables to video levels with low distortion Since it is a closed loop de- vice the EL2020 provides better gain accuracy and lower distor- tion than an open loop buffer The device includes output short circuit protection and input offset adjust capability
The bandwidth and slew rate of the EL2020 are relatively inde-pendent of the closed loop gain taken The 50 MHz bandwidth at unity gain only reduces to 30 MHz at a gain of 10 The EL2020 may be used in most applications where a conventional op amp is used with a big improvement in speed power prod-uct
Elantec products and facilities comply with Elantec document QRA-1 Processing-Monolithic Products
EL2020C Maximum Ratings
VS SupplyVoltage ±18 Vor 36V
VIN InputVoltage ±15 Vor VS
DVIN DifferentialInputVoltage ±10V
IIN InputCurrent(Pins2or3) ±10mA
IINS InputCurrent(Pins1,5,or8) ±5mA
PD MaximumPowerDissipation
(SeeCurves) 1.25W
IOP PeakOutputCurrent ShortCircuit
Protected
OutputShortCircuitDuration
(Note2) Continuous
TA OperatingTemperatureRange -40to+85
TJ OperatingJunctionTemperature
Plastic Package,SOL 150
Tst StorageTemperature 65 Cto 150
VIN InputVoltage ±15 Vor VS
DVIN DifferentialInputVoltage ±10V
IIN InputCurrent(Pins2or3) ±10mA
IINS InputCurrent(Pins1,5,or8) ±5mA
PD MaximumPowerDissipation
(SeeCurves) 1.25W
IOP PeakOutputCurrent ShortCircuit
Protected
OutputShortCircuitDuration
(Note2) Continuous
TA OperatingTemperatureRange -40to+85
TJ OperatingJunctionTemperature
Plastic Package,SOL 150
Tst StorageTemperature 65 Cto 150
EL2020C Features
. Slew rate 500 Vs
. ±33 mA output current
. Drives± 24V into 75
. Differential phase <01
. Differential gain <01%
. V supply± 5V to ±18V
. Output short circuit protected
. Uses current mode feedback
. 1% settling time of 50 ns for 10V step
. Low cost
. 9 mA supply current
. 8-pin mini-dip
. ±33 mA output current
. Drives± 24V into 75
. Differential phase <01
. Differential gain <01%
. V supply± 5V to ±18V
. Output short circuit protected
. Uses current mode feedback
. 1% settling time of 50 ns for 10V step
. Low cost
. 9 mA supply current
. 8-pin mini-dip
EL2020C Typical Application
. Video gain block
. Residue amplifier
. Radar systems
. Current to voltage converter
. Coax cable driver with gain of 2
. Residue amplifier
. Radar systems
. Current to voltage converter
. Coax cable driver with gain of 2

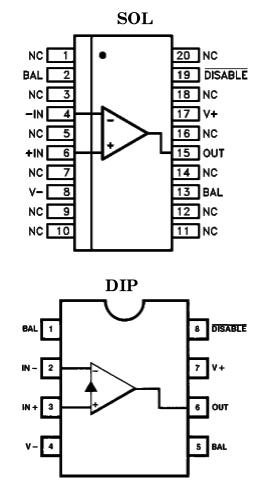

EL2020C Connection Diagram
EL2020C
PDF/DataSheet Download
- Datasheet: EL2020C
- File Size: 419112 KB
- Manufacturer: ELANTEC [Elantec Semiconductor]
- Click here to Download
