FBL08A24H1A

FAN 24VDC 2.52W 80MM

product image

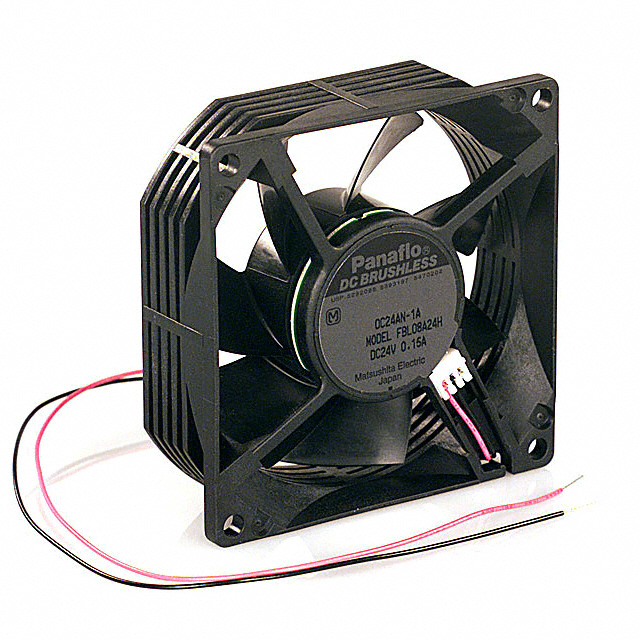

FBL08A24H1A Picture
See larger image
SeekIC No. : 003439951 Detail

FBL08A24H1A: FAN 24VDC 2.52W 80MM

FBL08A24H1A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FBL08A24H1A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: FBL Manufacturer: NMB Technologies Corporation
Fan Type: Tubeaxial Size / Dimension: Square - 80mm L x 80mm H x 25.5mm W
Voltage - Rated: 24VDC Power (Watts): 2.52W
Features: - RPM: 2950 RPM
Noise: 32 dB Static Pressure: 0.149 in H2O (37.1 Pa)
Package / Case : SOP-20 Air Flow: 39.6 CFM (1.12m³/min)
Termination: 2 Wire Leads Bearing Type: Hydro-wave (HWB)

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Power (Watts): 2.52W
Series: FBL
Manufacturer: NMB Technologies Corporation
Size / Dimension: Square - 80mm L x 80mm H x 25.5mm W
RPM: 2950 RPM
Noise: 32 dB
Static Pressure: 0.149 in H2O (37.1 Pa)
Air Flow: 39.6 CFM (1.12m³/min)
Bearing Type: Hydro-wave (HWB)
Voltage - Rated: 24VDC


Parameters:

Technical/Catalog InformationFBL08A24H1A
VendorNMB Technologies Corporation
CategoryFans
Voltage - Rated 24VDC
Power (Watts)2.52W
Bearing TypeHydro-wave (HWB)
Size / DimensionSquare - 80mm L x 80mm H x 25.4mm W
Air Flow39.6 CFM
Features-
Termination2 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FBL08A24H1A
FBL08A24H1A
P11020 ND
P11020ND
P11020
