Part Number: FDFMC2P120



MFG: FSC





Description: FDFMC2P120 combines the exceptional performance of Fairchild's PowerTrench MOSFET technology with a ve...


Urgent Purchase

FDFMC2P120 General Description


FDFMC2P120 combines the exceptional performance of Fairchild's PowerTrench MOSFET technology with a very low forward voltage drop Schottky barrier rectifier in a MicroFET package.

This device is designed specifically as a single package solution for Buck Boost. It features a fast switching, low gate charge MOSFET with very low on-state resistance.

FDFMC2P120 Maximum Ratings

Symbol
Parameter
Ratings
Units
VDSS
VGSS
 Drain-Source Voltage
Gate-Source Voltage
20
±12
3.5
10
20
2
2.4
1.2
55 to +150
V
V
A

V
A
W

°C
ID
 Drain Current Continuous
Pulsed		 (Note 1a)

VRRM

 Schottky Repetitive Peak Reverse Voltage

IO

 Schottky Average Forward Current (Note a)
PD
 Power Dissipation (Steady State) (Note 1a)
(Note 1b)
TJ,TSTG Operating and Storage Junction Temperature Range

FDFMC2P120 Features

• 2 A, 20 V RDS(ON) = 125 mΩ @ VGS = 4.5 V RDS(ON) = 200 mΩ @ VGS = 2.5 V
• Low Profile 0.8mm maximum in the new package MicroFET 3x3 mm

FDFMC2P120 Typical Application

• Buck Boost

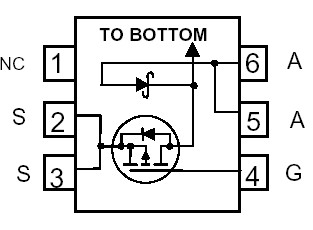

FDFMC2P120 Connection Diagram

FDFMC2P120 Connection Diagram

FDFMC2P120 datasheet

FDFMC2P120
PDF/DataSheet Download

  • Datasheet: FDFMC2P120
  • File Size: 126925 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
