GLT41116

Features: ·65,536 words by 16 bits organization.·Fast access time and cycle time.·Dual CAS input.·Low power dissipation.·Read-Modify-Write, RAS-Only Refresh, CAS-before-RAS Refresh, Hidden Refresh and Test Mode Capability.·256 refresh cycles per 4ms.·Available in 40-Pin 400 mil SOJ, and 40/44-Pin ...

product image

GLT41116 Picture
See larger image
SeekIC No. : 004353834 Detail

GLT41116: Features: ·65,536 words by 16 bits organization.·Fast access time and cycle time.·Dual CAS input.·Low power dissipation.·Read-Modify-Write, RAS-Only Refresh, CAS-before-RAS Refresh, Hidden Refresh a...

GLT41116 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GLT41116
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·65,536 words by 16 bits organization.
·Fast access time and cycle time.
·Dual CAS input.
·Low power dissipation.
·Read-Modify-Write, RAS-Only Refresh, CAS-before-RAS Refresh, Hidden Refresh and Test Mode Capability.
·256 refresh cycles per 4ms.
·Available in 40-Pin 400 mil SOJ, and 40/44-Pin TSOP (Type II).
·Single 5.0V± 10% Power Supply.
·All inputs and Outputs are TTL compatible.
·Fast Page Mode operation.

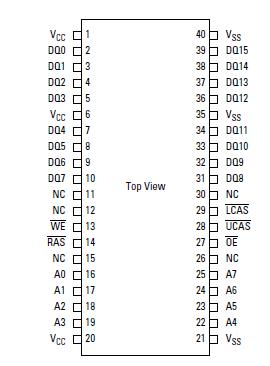

Pinout

Connection Diagram


Specifications

Parameter Rating
Operating Temperature, TA (ambient) -0 to +70
Storage Temperature (plastic) -55 to +125
Voltage Relative to V SS -1.0V to +7.0V
Short Circuit Output Current' 50 mA
Power Dissipitation 1.0 W



Description

The GLT41116 is a 65,536 x 16 bit high-performance CMOS dynamic random access memory. The GLT41116 offers Fast Page mode, andhas both BYTE WRITE and WORD WRITE access cycles via two CAS pins. The GLT41116 has symmetric address and accepts 256-cycle refresh in 4ms interval.

All inputs of GLT41116 are TTL compatible. Fast Page Mode operation allows random access up to 256x16 bits, within a page, with cycle times as short as 18ns.

The GLT41116 is best suited for graphics, and DSP applications requiring high performance memories.
