Purchase GLT41316, In-stock GLT41316 From SeekIC.
Package Cooled:TSOP40
Part Number: GLT41316
Package Cooled: TSOP40
Description: The GLT41316 is a 65,536 x 16 bit highperformance CMOS dynamic random access memory. The GLT41316 offe...
- Table of contents:
GLT41316
-
Suppliers
DataSheet
General Description
GLT41316 General Description
The GLT41316 is a 65,536 x 16 bit highperformance CMOS dynamic random access memory. The GLT41316 offers Fast Page mode ,and has both BYTE WRITE and WORD WRITE access cycles via two WE pins. The GLT41316 has symmetric address and accepts 256-cycle refresh in 4ms interval.
All inputs are TTL compatible. Fast Page Mode operation allows random access up to 256x16 bits, within a page, with cycle times as short as 18ns.
The GLT41316 is best suited for graphics, and DSP applications requiring high performance memories.
GLT41316 Maximum Ratings
Operating Temperature, TA (ambient).......-0 to +70
Storage Temperature(plastic)................-55 to +150
Voltage Relative to VSS............................-1.0V to + 7.0V
Short Circuit Output Current...................................50mA
Power Dissipation....................................................1.0W
Storage Temperature(plastic)................-55 to +150
Voltage Relative to VSS............................-1.0V to + 7.0V
Short Circuit Output Current...................................50mA
Power Dissipation....................................................1.0W
GLT41316 Features
·65,536 words by 16 bits organization.
·Fast access time and cycle time.
·Dual WE Input.
·Low power dissipation.
·Read-Modify-Write, RAS -Only Refresh,
CAS-Before-RAS Refresh, Hidden
Refresh and Test Mode Capability.
·256 refresh cycles per 4ms.
·Available in 40-pin 400 mil SOJ,and 40/44 pin TSOP (II).
·Single 5.0V±10% Power Supply.
·All inputs and Outputs are TTL compatible.
·Fast Page Mode operation.
·Fast access time and cycle time.
·Dual WE Input.
·Low power dissipation.
·Read-Modify-Write, RAS -Only Refresh,
CAS-Before-RAS Refresh, Hidden
Refresh and Test Mode Capability.
·256 refresh cycles per 4ms.
·Available in 40-pin 400 mil SOJ,and 40/44 pin TSOP (II).
·Single 5.0V±10% Power Supply.
·All inputs and Outputs are TTL compatible.
·Fast Page Mode operation.

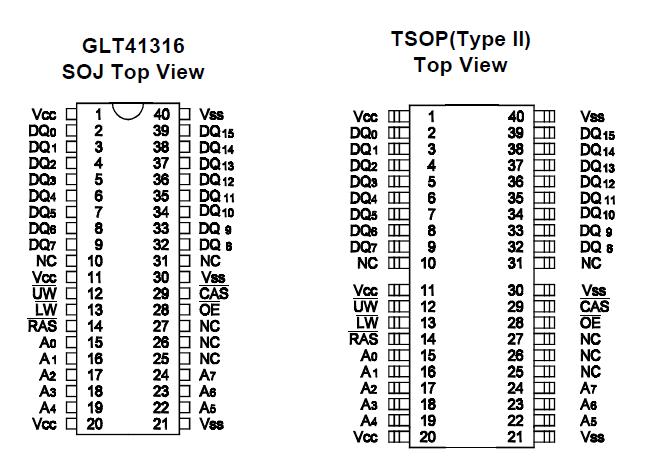

GLT41316 Connection Diagram
